SFG 18 UNIBAL


Country of Origin: SWITZERLAND
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - UNIBAL
Item Number - SFG 18 UNIBAL
Also Known As - SFG18
Category - Rod-End Bearings with Maintenance in Standard Series

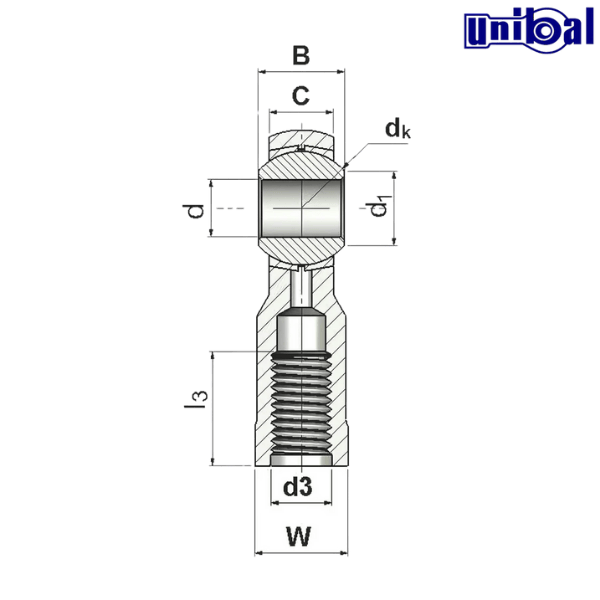

Bore Diameter with Tolerance H7 (d) mm - 18
Width (B) mm - 23 (0 or -0.05)
Width of the Cage or Mount (C) mm - 16.5 (± 0.2)
Diameter of the Sphere (dk) mm - 31.75
Diameter of Flat (d1) mm - 21.89
d2 (mm) - 42
d3 with Tolerance 6H (mm) - M18 x1.5
d5 (mm) - 31
C4 (mm) - 25
h1 (mm) - 71
l3 (mm) - 33 (± 0.5)
l4 (mm) - 92
l5 (mm) - 10
W (mm) - 27
Basic Static Loading (C0) daN - 3830
Weight (kg) - 0.28

** Images are for representation purposes only
