Description
Brand - ZEN
Item Number - SFC212 ZEN
Category - Stainless Steel Pillow Blocks (SFC)

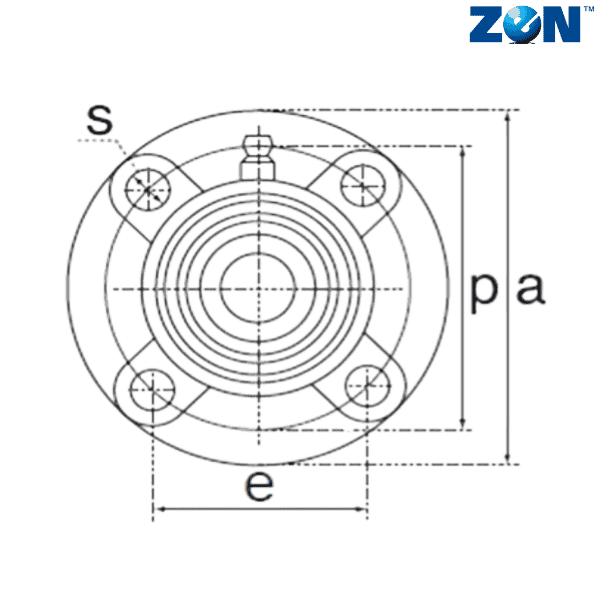

Inner Diameter (d) mm - 60
Overall Length (a) mm - 193.5
P (mm) - 160
Bolt Center to Center Length (e) mm - 113.1
i (mm) - 17
s (mm) - 19
j (mm) - 12
g (mm) - 36
f (mm) - 135
z (mm) - 56.7
Bi (mm) - 65.1
n (mm) - 25.4
Weight (kg) - 5.1
Bearing - SUC212

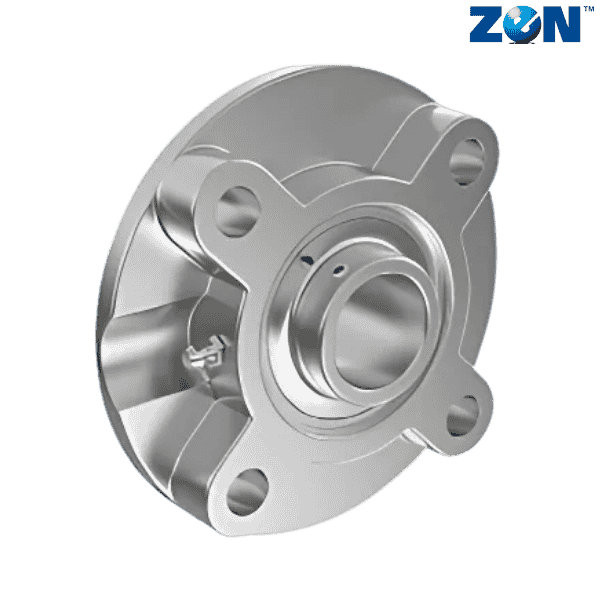

** Images are for representation purposes only
