Description
Brand - ZEN
Item Number - SFC211 ZEN

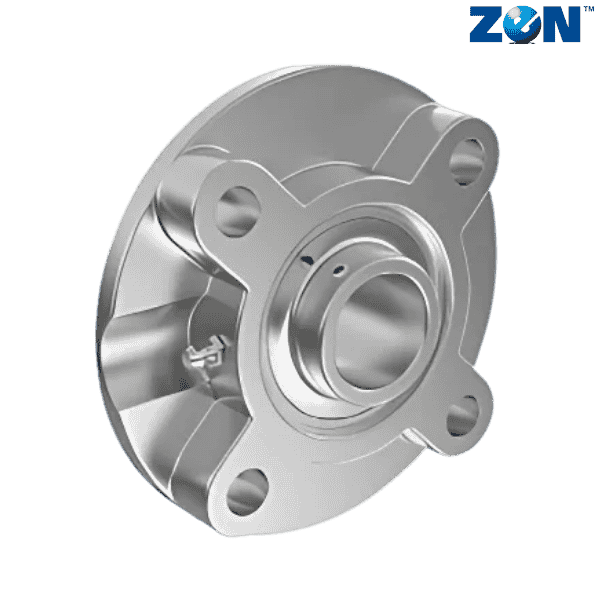

Category - Stainless Steel Pillow Blocks (SFC)

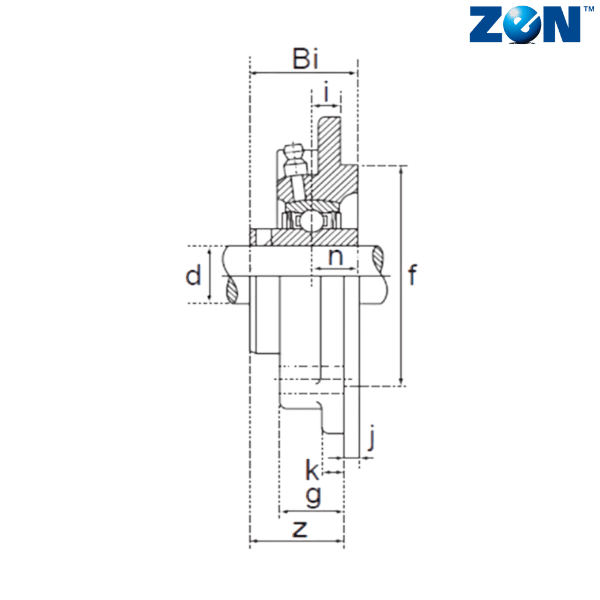

Inner Diameter (d) mm - 55

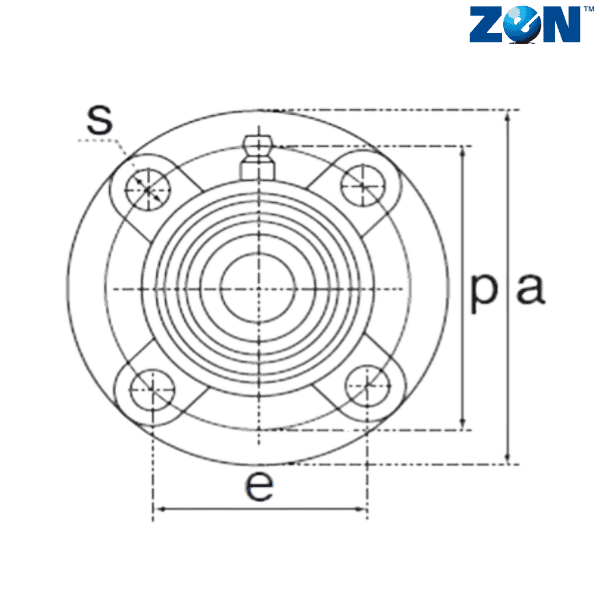

Overall Length (a) mm - 185
P (mm) - 150
Bolt Center to Center Length (e) mm - 106.1
i (mm) - 13
s (mm) - 19
j (mm) - 12
g (mm) - 31
f (mm) - 125
z (mm) - 46.4
Bi (mm) - 55.6
n (mm) - 22.2
Weight (kg) - 4.5
Bearing - SUC211
** Images are for representation purposes only
