Description
Brand - ZEN
Item Number - SFC210 ZEN

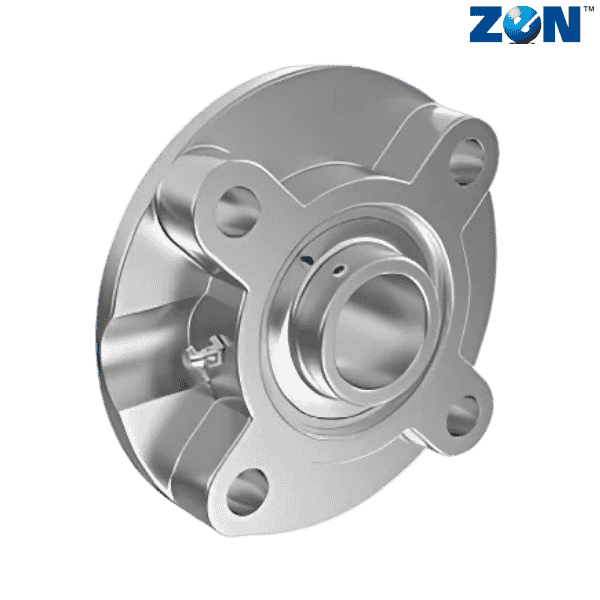

Category - Stainless Steel Pillow Blocks (SFC)

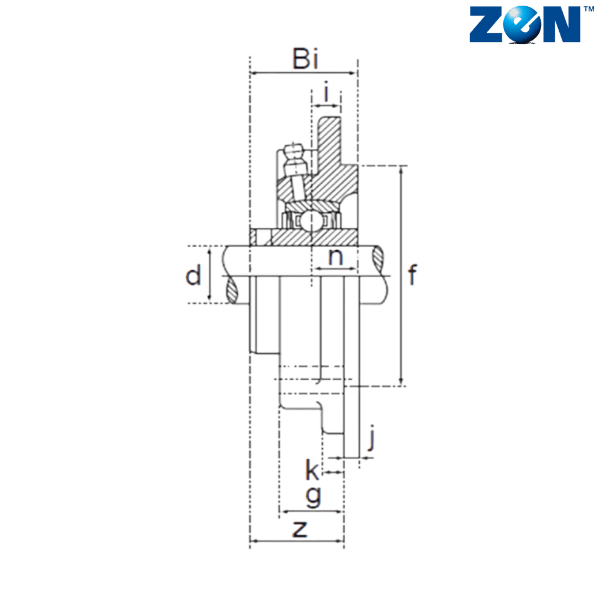

Inner Diameter (d) mm - 50

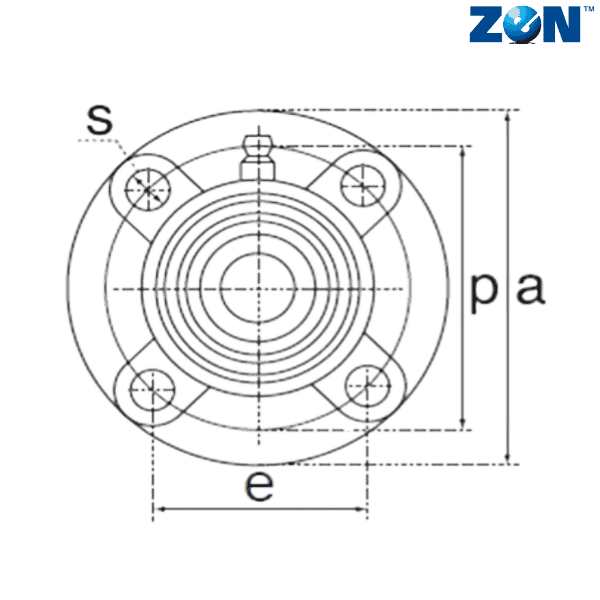

Overall Length (a) mm - 163
P (mm) - 138
Bolt Center to Center Length (e) mm - 97.6
i (mm) - 10
s (mm) - 16
j (mm) - 12
g (mm) - 28
f (mm) - 110
z (mm) - 42.6
Bi (mm) - 51.6
n (mm) - 19
Weight (kg) - 2.9
Bearing - SUC210
** Images are for representation purposes only
