Description

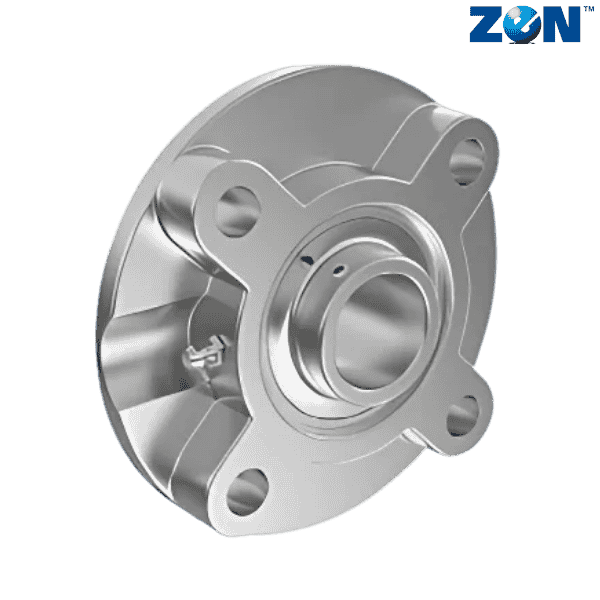

Brand - ZEN
Item Number - SFC209 ZEN
Category - Stainless Steel Pillow Blocks (SFC)

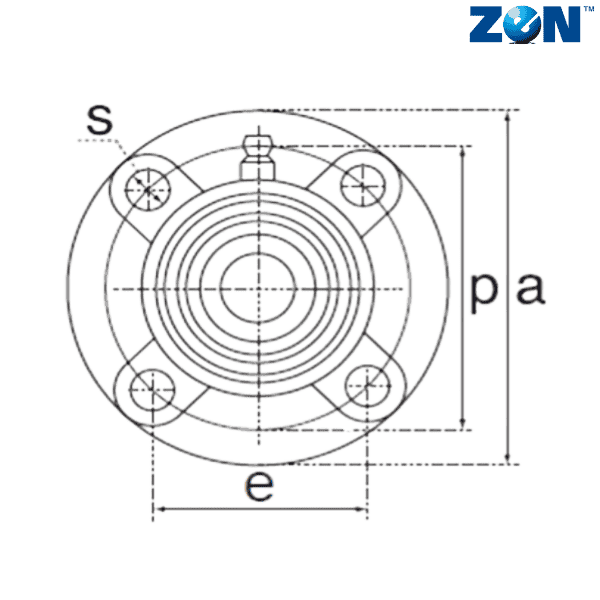

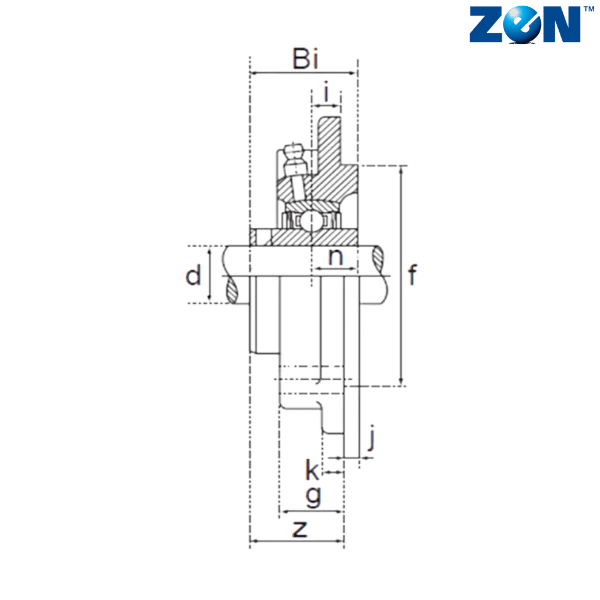

Inner Diameter (d) mm - 45
Overall Length (a) mm - 158.7
P (mm) - 132
Bolt Center to Center Length (e) mm - 93.3
i (mm) - 10
s (mm) - 16
j (mm) - 12
g (mm) - 26
f (mm) - 105
z (mm) - 40.2
Bi (mm) - 49.2
n (mm) - 19
Weight (kg) - 2.9
Bearing - SUC209
** Images are for representation purposes only
