Description
Brand - ZEN
Item Number - SFC208 ZEN
Category - Stainless Steel Pillow Blocks (SFC)

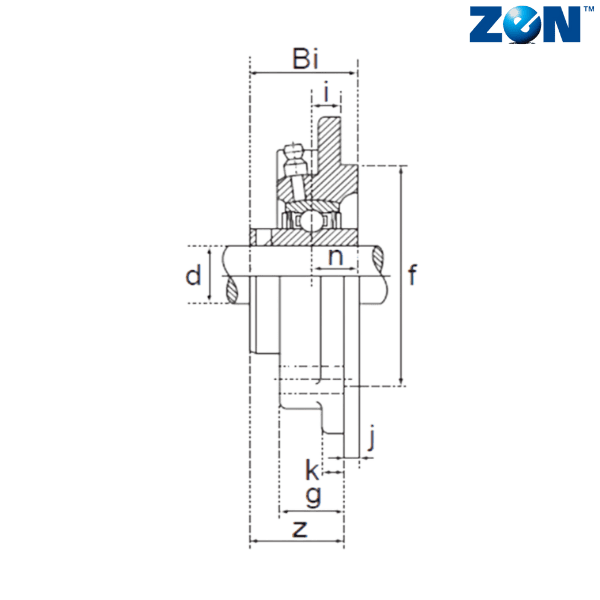

Inner Diameter (d) mm - 40

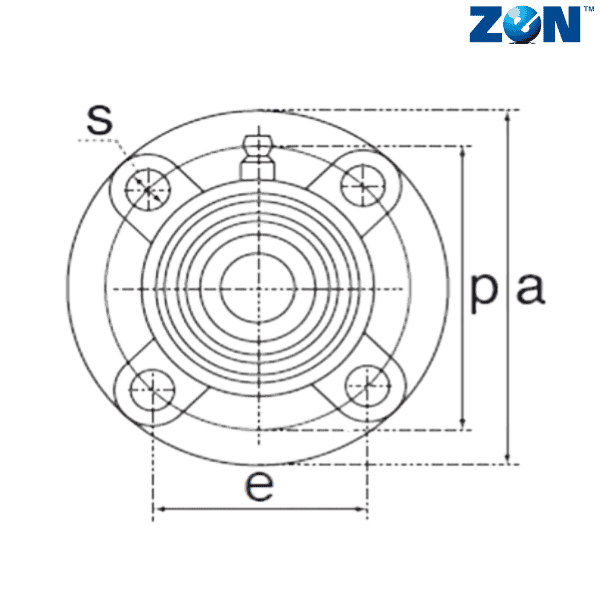

Overall Length (a) mm - 145
P (mm) - 120
Bolt Center to Center Length (e) mm - 84.8
i (mm) - 11
s (mm) - 14
j (mm) - 10
g (mm) - 26
f (mm) - 100
z (mm) - 41.2
Bi (mm) - 42.9
n (mm) - 19
Weight (kg) - 2
Bearing - SUC208

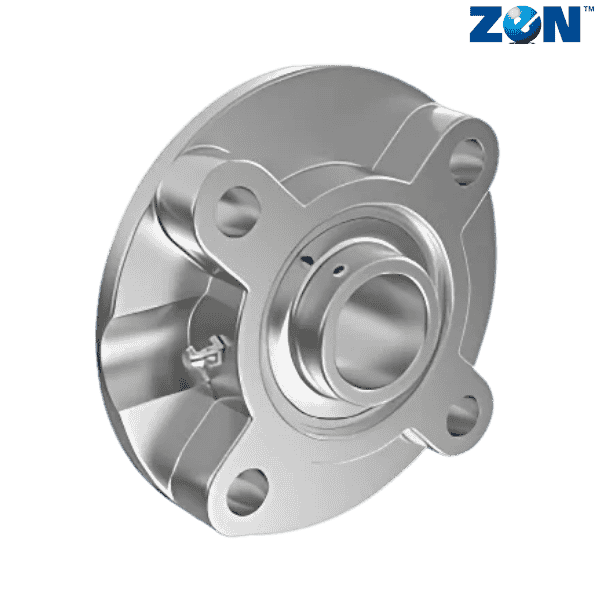

** Images are for representation purposes only
