Description
Brand - ZEN
Item Number - SFC207 ZEN
Category - Stainless Steel Pillow Blocks (SFC)

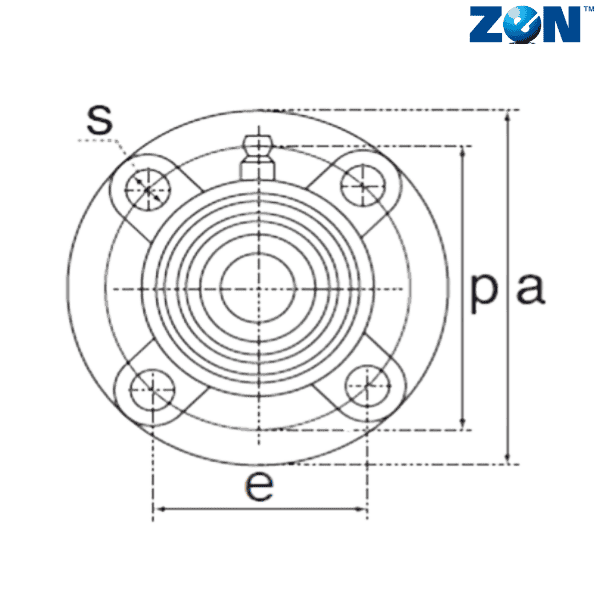

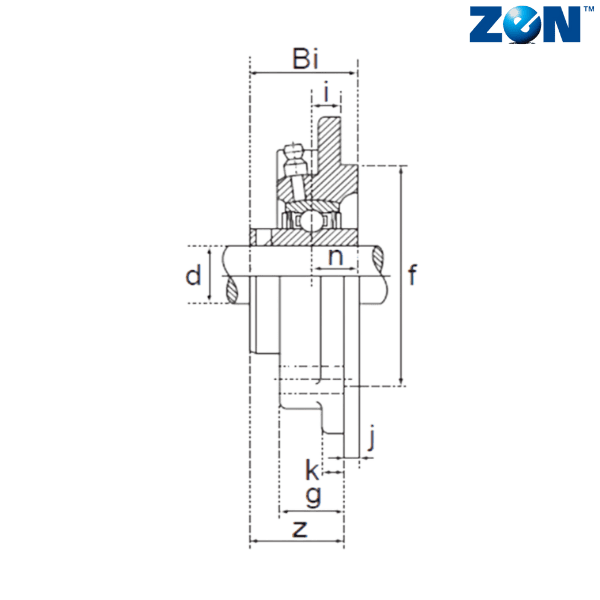

Inner Diameter (d) mm - 35
Overall Length (a) mm - 135
P (mm) - 110
Bolt Center to Center Length (e) mm - 77.8
i (mm) - 11
s (mm) - 14
j (mm) - 8
g (mm) - 26
f (mm) - 90
z (mm) - 36.4
Bi (mm) - 42.9
n (mm) - 17.5
Weight (kg) - 1.8
Bearing - SUC207

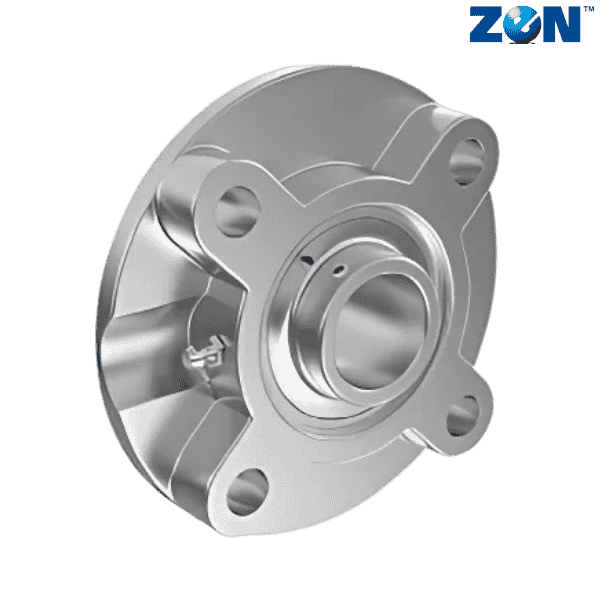

** Images are for representation purposes only
