Description

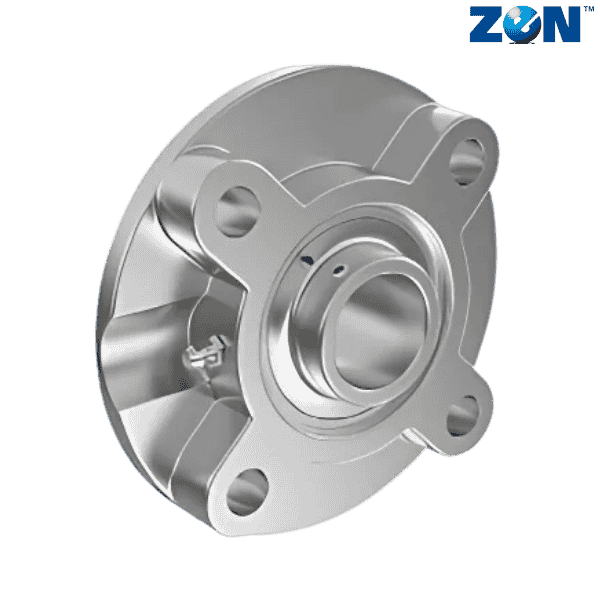

Brand - ZEN
Item Number - SFC206 ZEN
Category - Stainless Steel Pillow Blocks (SFC)

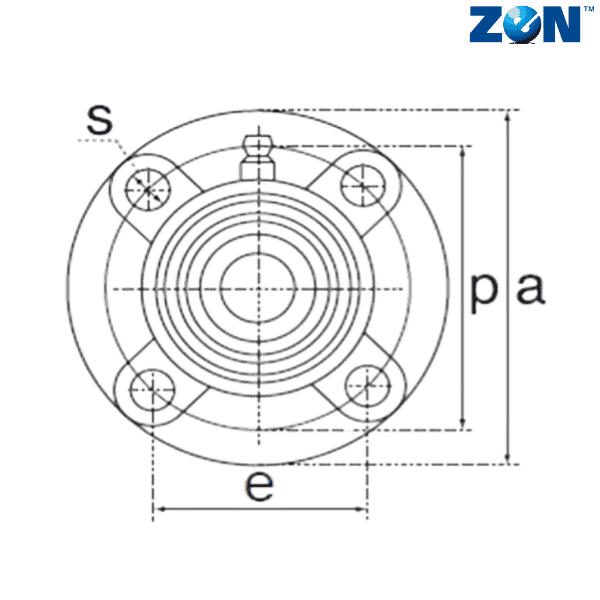

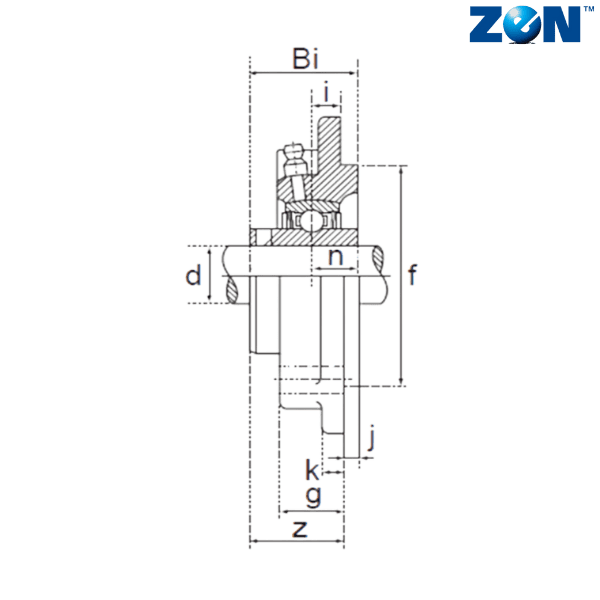

Inner Diameter (d) mm - 30
Overall Length (a) mm - 125
P (mm) - 100
Bolt Center to Center Length (e) mm - 70.7
i (mm) - 10
s (mm) - 12
j (mm) - 8
g (mm) - 23
f (mm) - 80
z (mm) - 32.2
Bi (mm) - 38.1
n (mm) - 15.9
Weight (kg) - 1.3
Bearing - SUC206
** Images are for representation purposes only
