Description
Brand - ZEN
Item Number - SFC205 ZEN
Category - Stainless Steel Pillow Blocks (SFC)

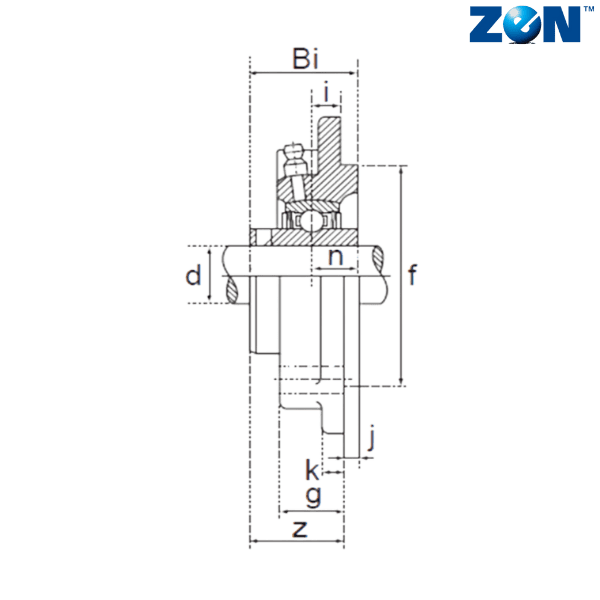

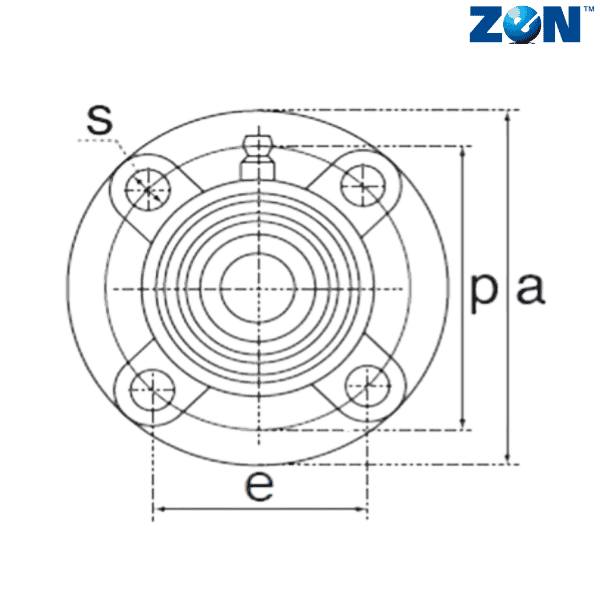

Inner Diameter (d) mm - 25
Overall Length (a) mm - 115
P (mm) - 90
Bolt Center to Center Length (e) mm - 63.6
i (mm) - 10
s (mm) - 12
j (mm) - 6
g (mm) - 21
f (mm) - 70
z (mm) - 29.8
Bi (mm) - 34.1
n (mm) - 14.3
Weight (kg) - 0.98
Bearing - SUC205

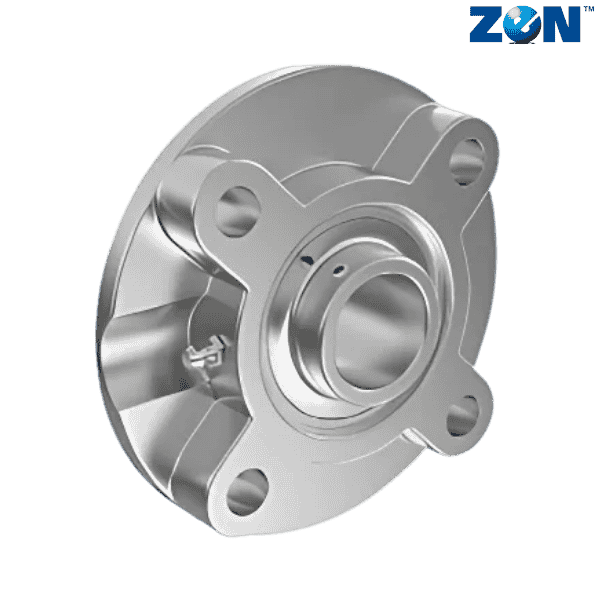

** Images are for representation purposes only
