Description
Brand - ZEN
Item Number - SFC201 ZEN
Category - Stainless Steel Pillow Blocks (SFC)

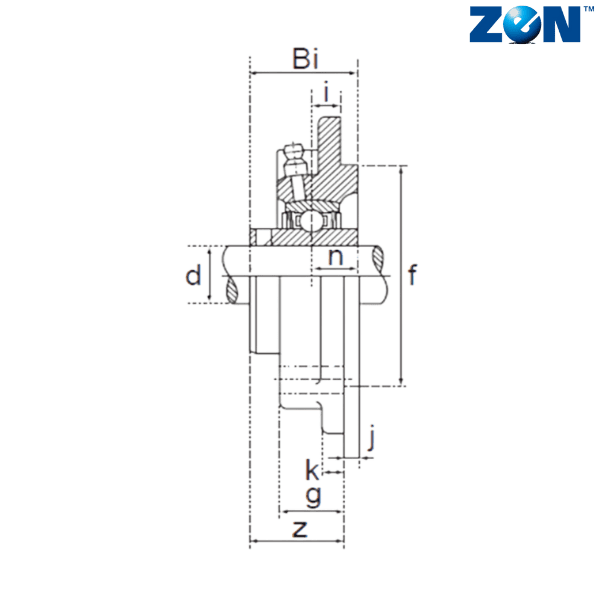

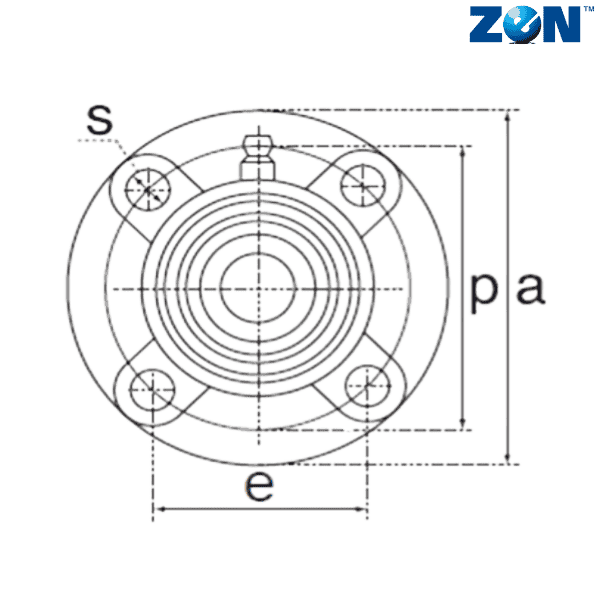

Inner Diameter (d) mm - 12
Overall Length (a) mm - 100
P (mm) - 78
Bolt Center to Center Length (e) mm - 55.1
i (mm) - 10
s (mm) - 12
j (mm) - 5
g (mm) - 20.5
f (mm) - 62
z (mm) - 28.3
Bi (mm) - 31
n (mm) - 12.7
Weight (kg) - 0.72
Bearing - SUC201
** Images are for representation purposes only
