Description

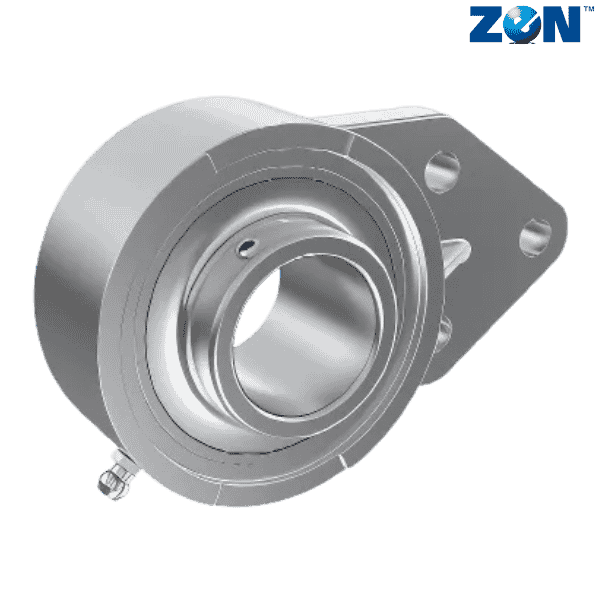

Brand - ZEN
Item Number - SFB210 ZEN
Category - Stainless Steel Pillow Blocks (SFB)

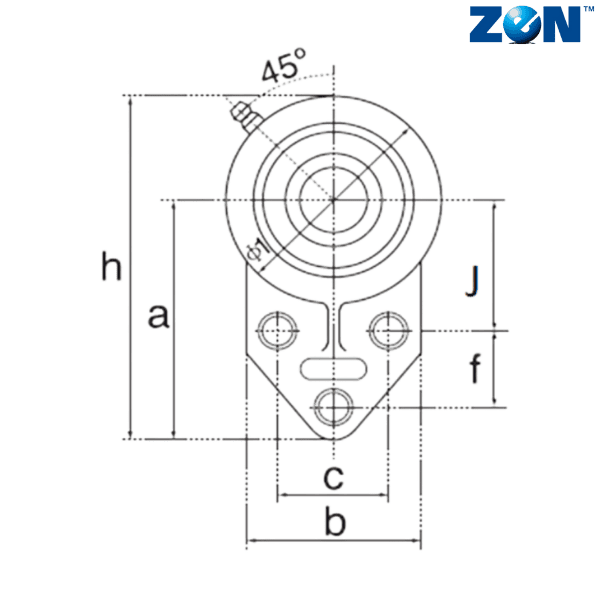

Inner Diameter (d) mm - 50
J (mm) - 74.6
Overall Length (h) mm - 190
c (mm) - 69.9
f (mm) - 41.3

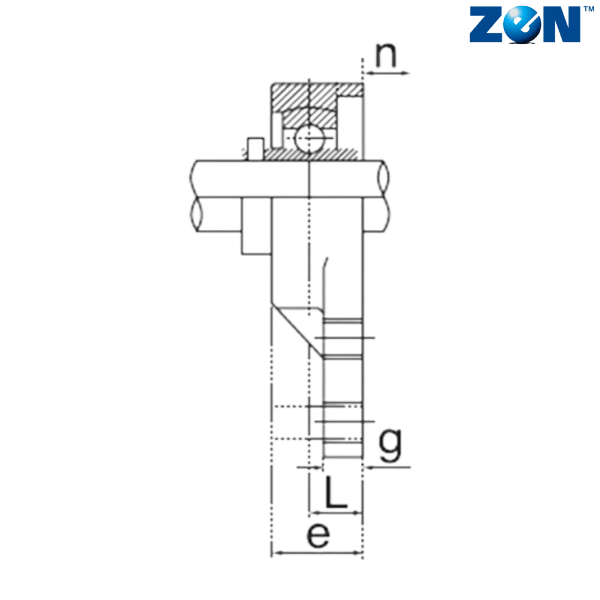

L (mm) - 21.8
g (mm) - 12.7
e (mm) - 38
a (mm) - 82
s (mm) - 13
b (mm) - 102
Weight (kg) - 2.34
Bearing - SUC210
** Images are for representation purposes only
