Description
Brand - ZEN
Item Number - SFB205 ZEN
Category - Stainless Steel Pillow Blocks (SFB)

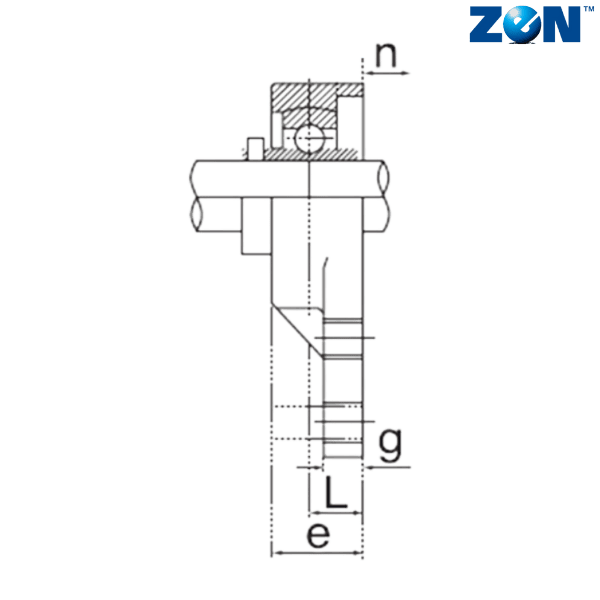

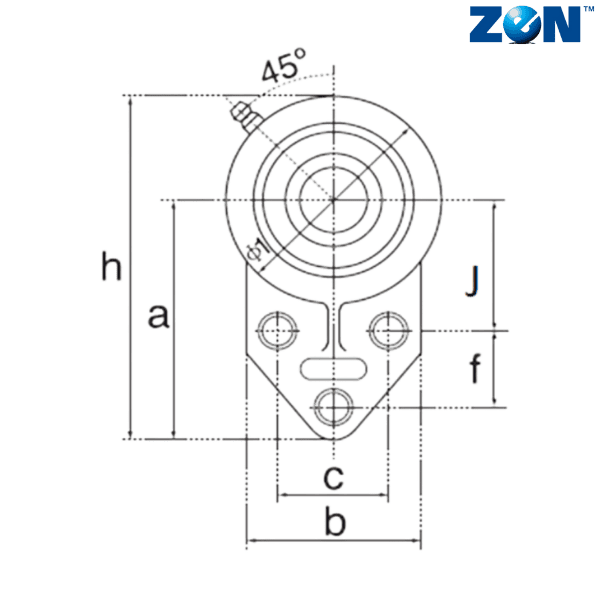

Inner Diameter (d) mm - 25
J (mm) - 46
Overall Length (h) mm - 121
c (mm) - 41.3
f (mm) - 28.5
L (mm) - 16.7
g (mm) - 9.5
e (mm) - 28.5
a (mm) - 52
s (mm) - 10
b (mm) - 63.5
Weight (kg) - 0.54
Bearing - SUC205

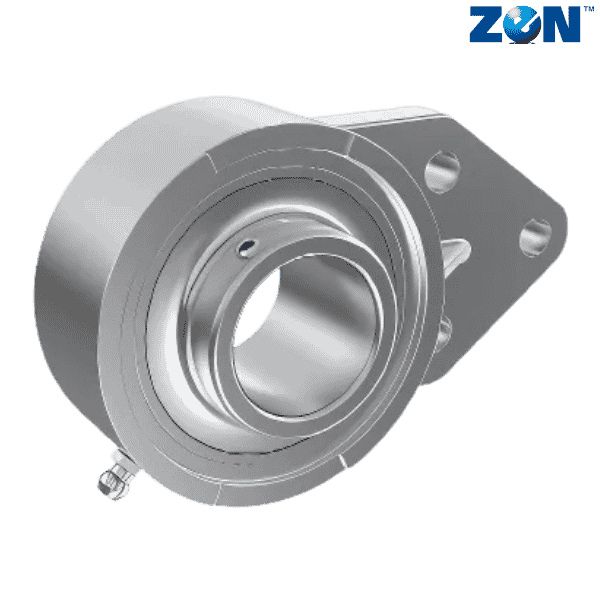

** Images are for representation purposes only
