SF350CP0 RBC

Brand - RBC
Item Number - SF350CP0*RBC
Category - Radial Contact, C-Type Thin Section Ball Bearings

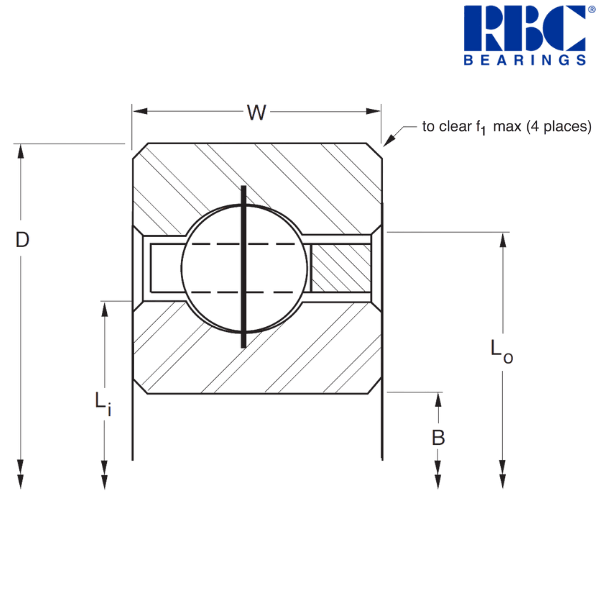

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 35 inch
Outside Diameter (D) - 36.5 inch
Width (W) - 0.75 inch
Land Diameter of Inner Ring (Li) - 35.563 inch
Land Diameter of Outer Ring (Lo) - 35.938 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.375 inch
Ball Quantity - 143 pcs.
Approximate Weight - 15.1 lbs
Radial Static Load - 40350 lbf
Radial Dynamic Load - 10603 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 889 mm
Outside Diameter (D) - 927.1 mm
Width (W) - 19.05 mm
Land Diameter of Inner Ring (Li) - 903.3 mm
Land Diameter of Outer Ring (Lo) - 912.83 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 6.849 kg
Radial Static Load - 179490 N
Radial Dynamic Load - 47160 N

Description of Suffixes and Prefixes :
S - No seals or shields
F - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
