Description
Brand - ZEN
Item Number - SF212 ZEN

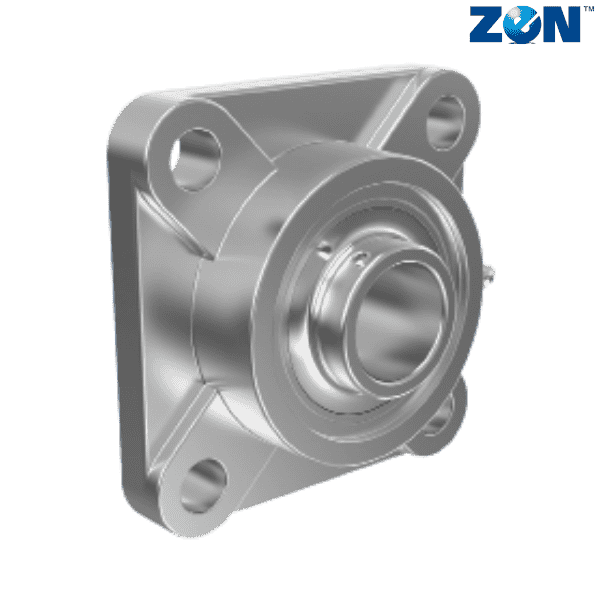

Category - Stainless Steel Pillow Blocks (SF)

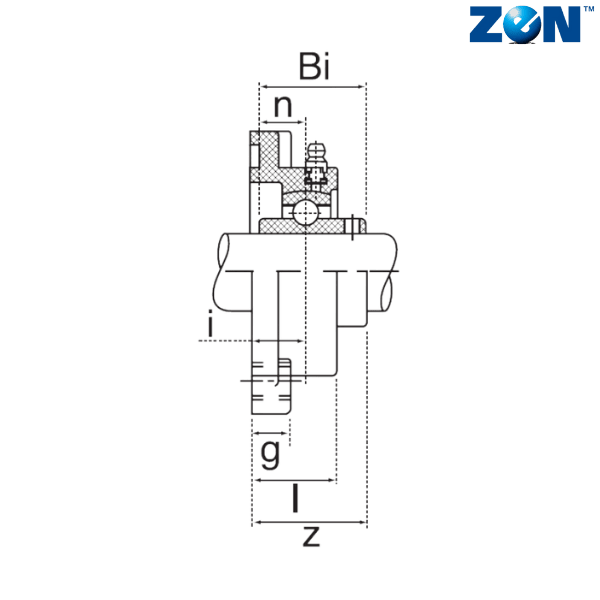

Inner Diameter (d) mm - 60

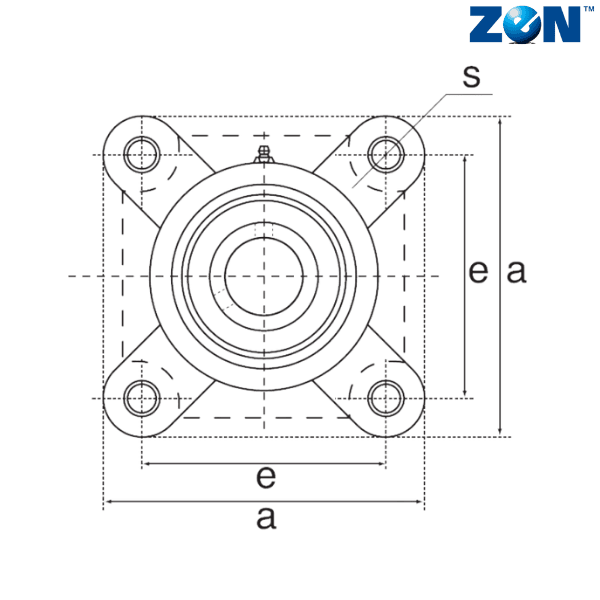

Overall Length (a) mm - 175
Bolt Center to Center Length (e) mm - 143
i (mm) - 29
l (mm) - 48
g (mm) - 20
s (mm) - 19
z (mm) - 68.7
Weight (kg) - 4.2
Bearing - SUC212
** Images are for representation purposes only
