Description
Brand - ZEN
Item Number - SF211 ZEN

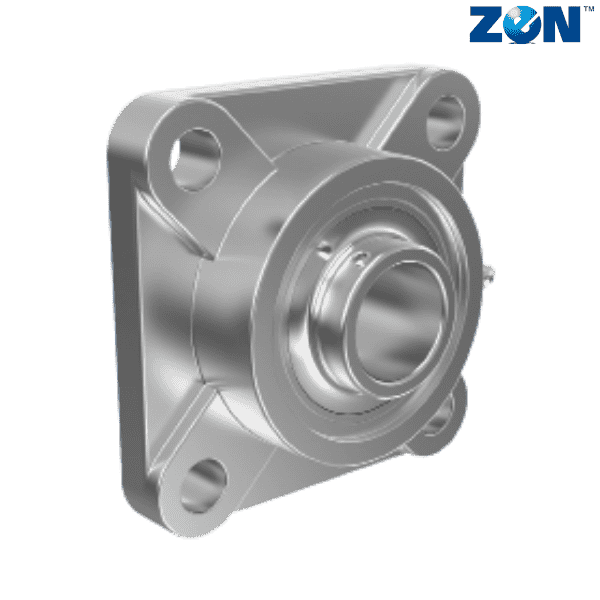

Category - Stainless Steel Pillow Blocks (SF)

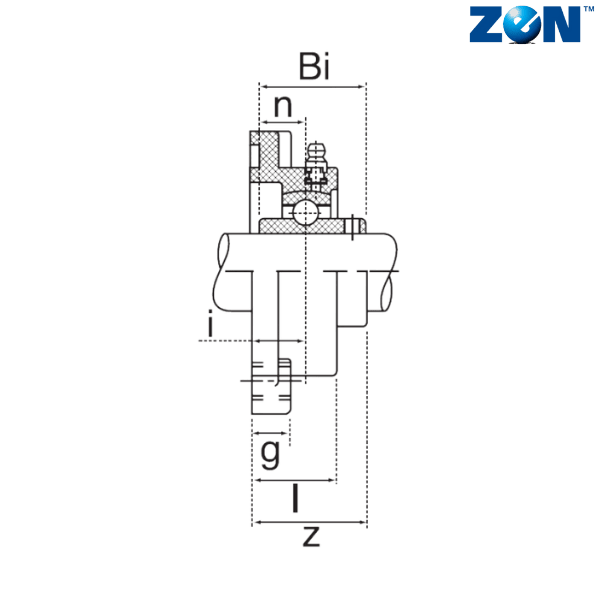

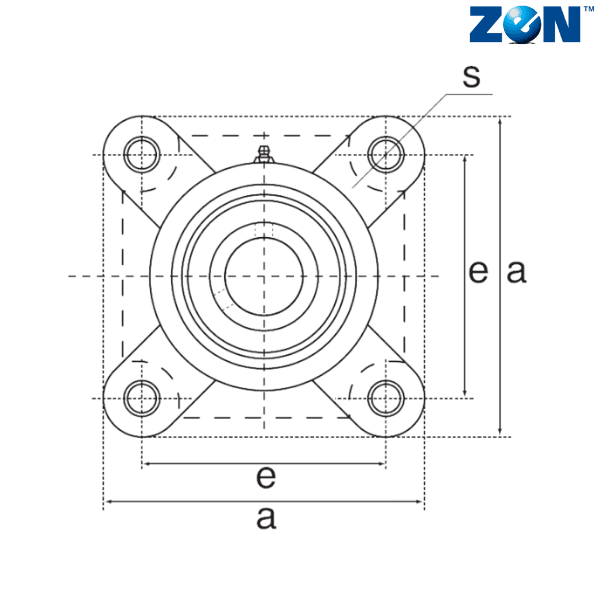

Inner Diameter (d) mm - 55
Overall Length (a) mm - 162
Bolt Center to Center Length (e) mm - 130
i (mm) - 25
l (mm) - 43
g (mm) - 20
s (mm) - 19
z (mm) - 58.4
Weight (kg) - 3.25
Bearing - SUC211
** Images are for representation purposes only
