Description
Brand - ZEN
Item Number - SF210 ZEN

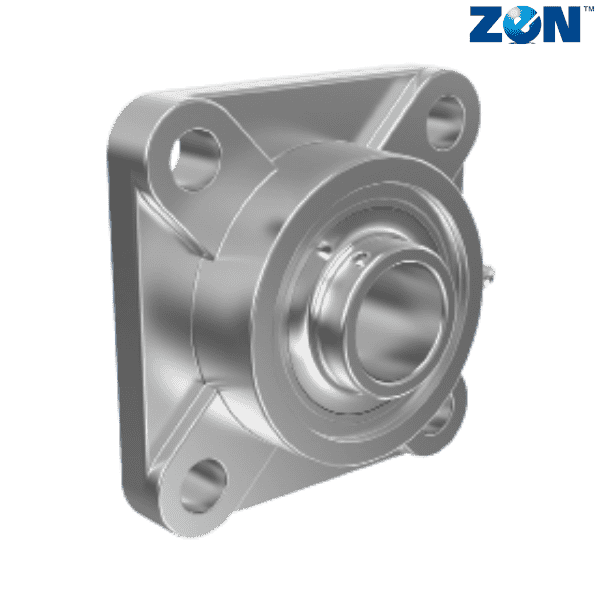

Category - Stainless Steel Pillow Blocks (SF)
Inner Diameter (d) mm - 50

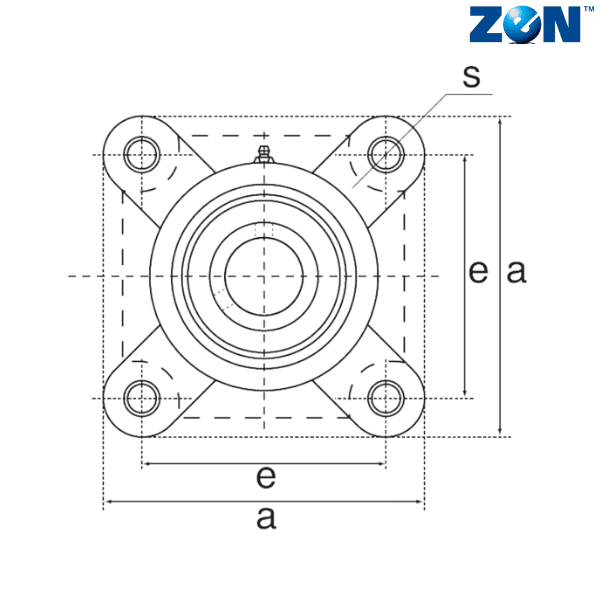

Overall Length (a) mm - 143
Bolt Center to Center Length (e) mm - 111

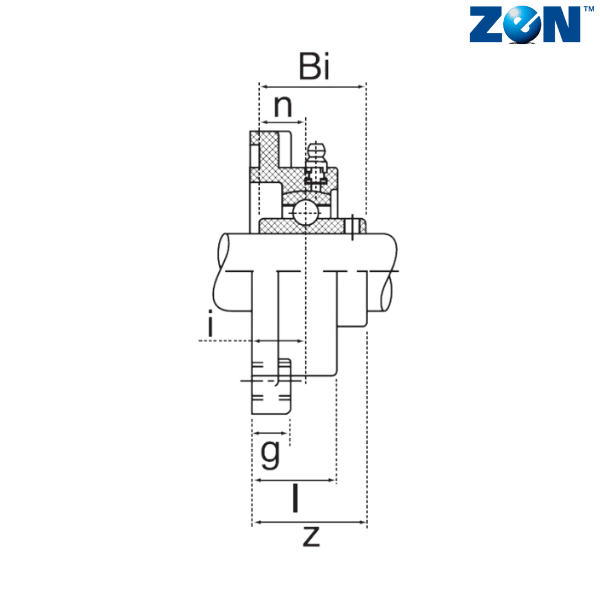

i (mm) - 21.8
l (mm) - 38
g (mm) - 18
s (mm) - 16
z (mm) - 54.6
Weight (kg) - 1.63
Bearing - SUC210
** Images are for representation purposes only
