Description

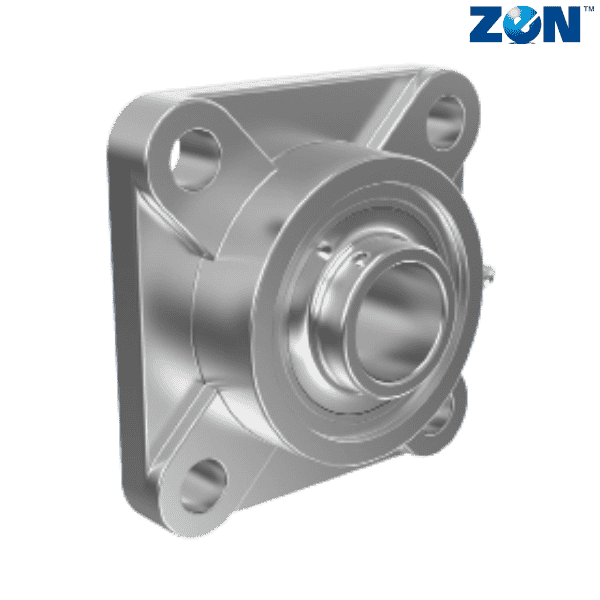

Brand - ZEN
Item Number - SF209 ZEN
Category - Stainless Steel Pillow Blocks (SF)

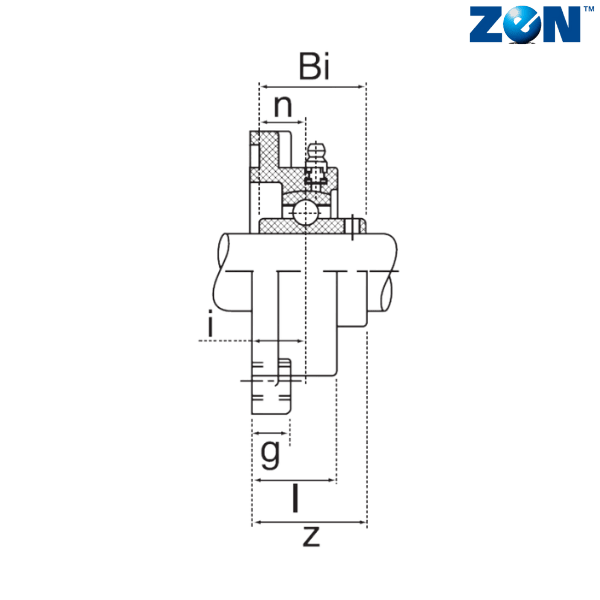

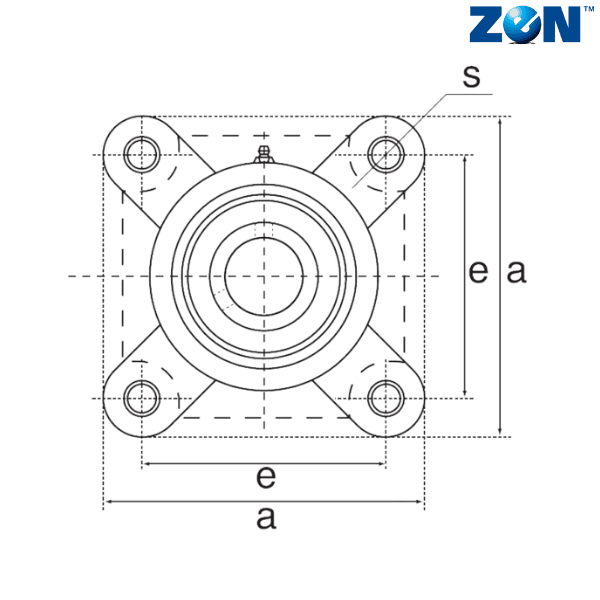

Inner Diameter (d) mm - 45
Overall Length (a) mm - 137
Bolt Center to Center Length (e) mm - 104.8
i (mm) - 21.8
l (mm) - 37
g (mm) - 16
s (mm) - 16
z (mm) - 52.2
Weight (kg) - 1.5
Bearing - SUC209
** Images are for representation purposes only
