Description
Brand - ZEN
Item Number - SF208 ZEN
Category - Stainless Steel Pillow Blocks (SF)

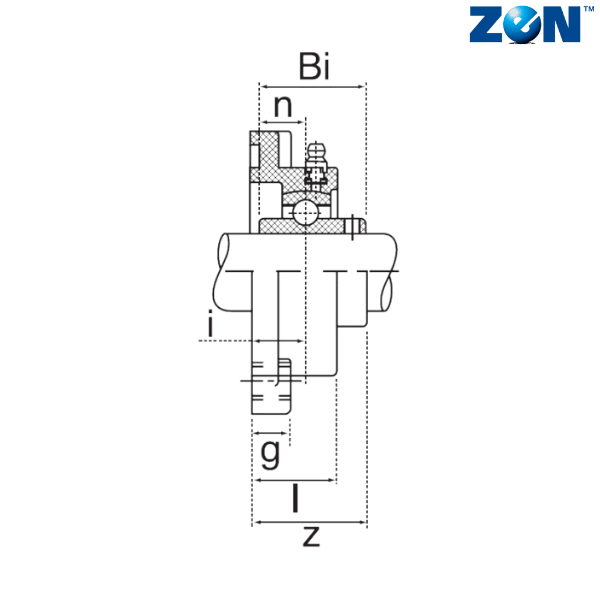

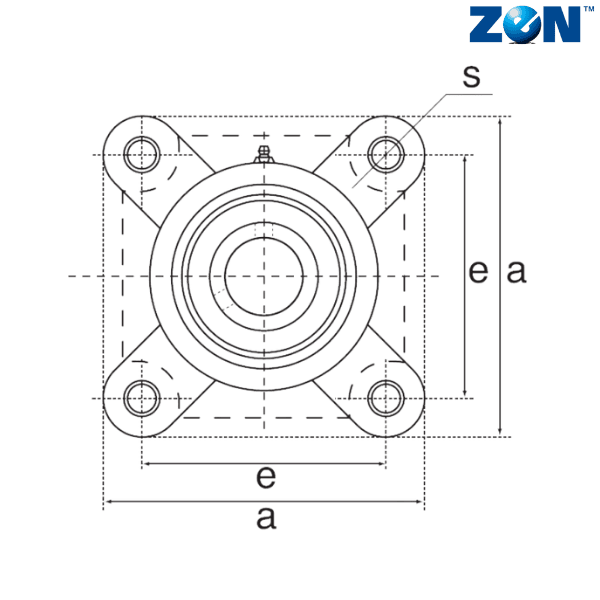

Inner Diameter (d) mm - 40
Overall Length (a) mm - 130
Bolt Center to Center Length (e) mm - 101.6
i (mm) - 21
l (mm) - 36
g (mm) - 16
s (mm) - 16
z (mm) - 51.2
Weight (kg) - 1.38
Bearing - SUC208

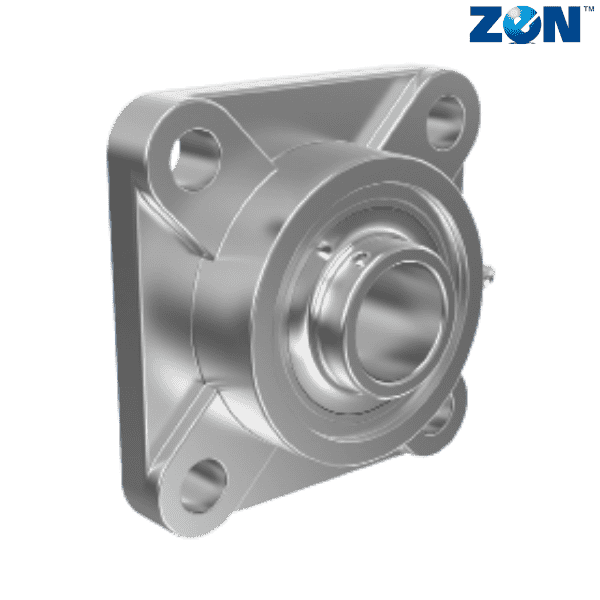

** Images are for representation purposes only
