Description
Brand - ZEN
Item Number - SF207 ZEN
Category - Stainless Steel Pillow Blocks (SF)
Inner Diameter (d) mm - 35

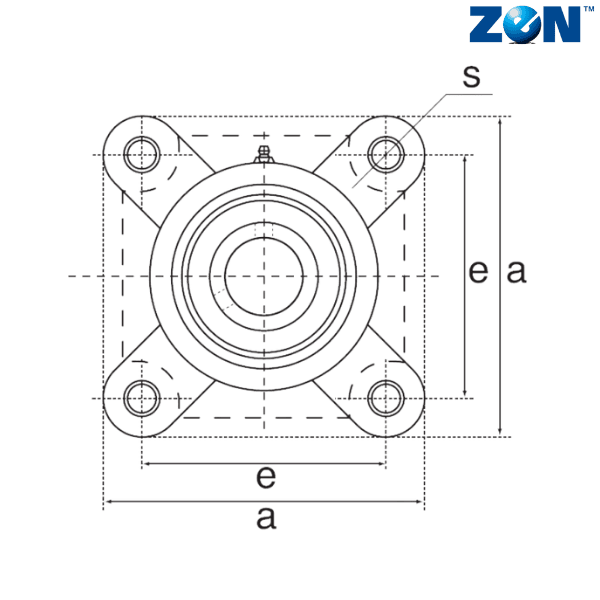

Overall Length (a) mm - 117
Bolt Center to Center Length (e) mm - 92

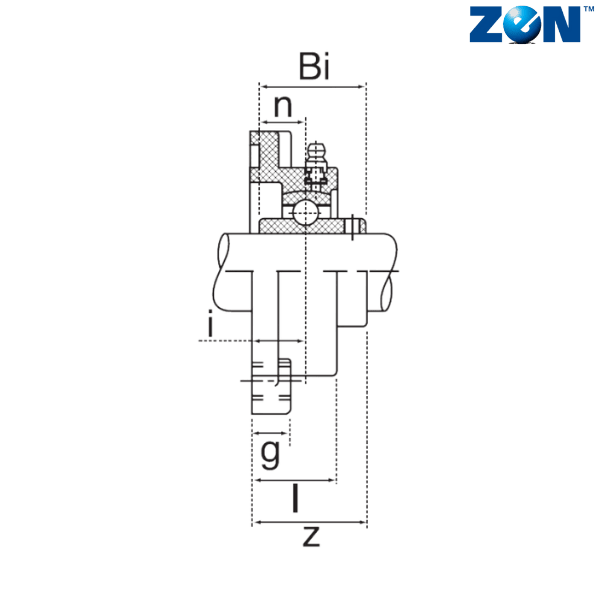

i (mm) - 19.1
l (mm) - 33
g (mm) - 16
s (mm) - 14
z (mm) - 44.4
Weight (kg) - 1.03
Bearing - SUC207

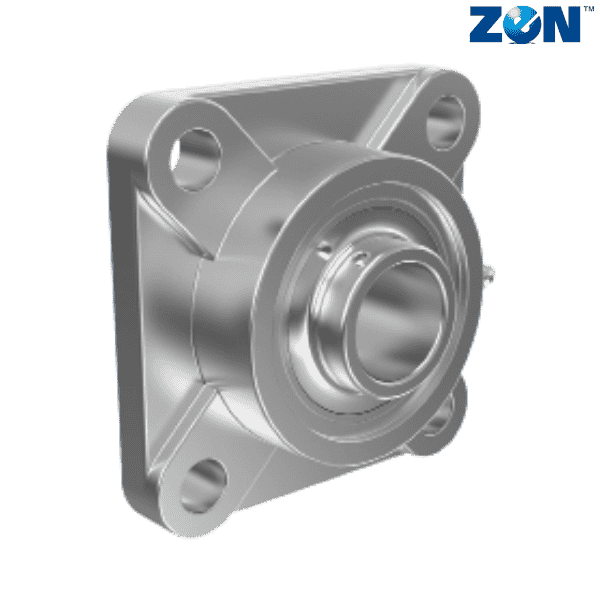

** Images are for representation purposes only
