Description
Brand - ZEN
Item Number - SF206 ZEN

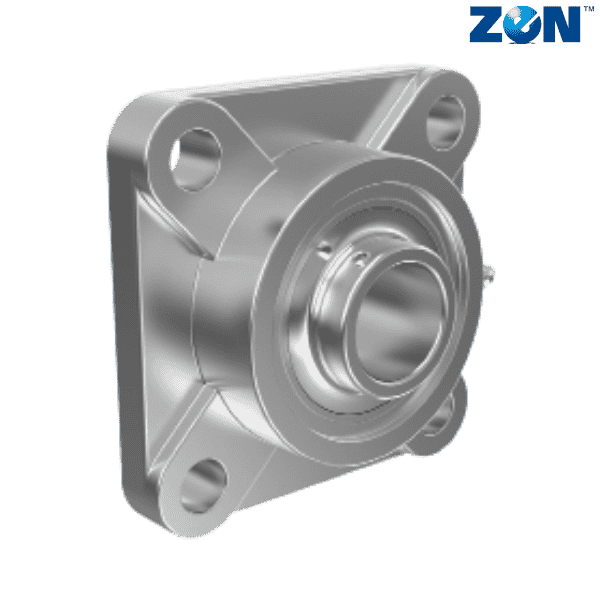

Category - Stainless Steel Pillow Blocks (SF)
Inner Diameter (d) mm - 30

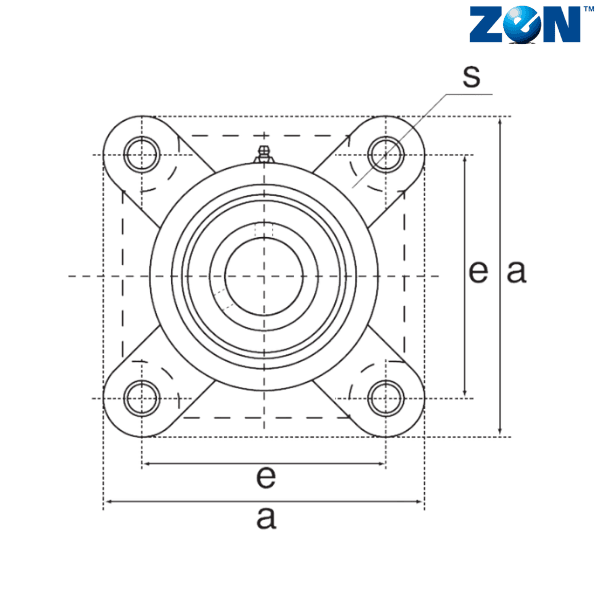

Overall Length (a) mm - 108
Bolt Center to Center Length (e) mm - 82.5

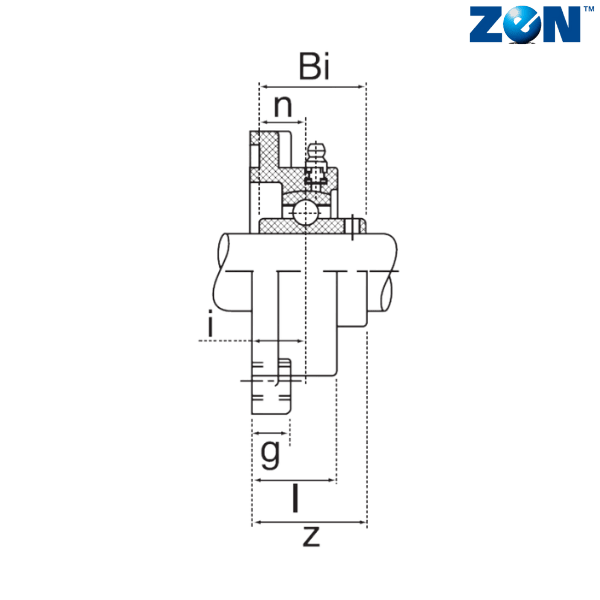

i (mm) - 17.9
l (mm) - 30
g (mm) - 14
s (mm) - 12
z (mm) - 40.2
Weight (kg) - 0.85
Bearing - SUC206
** Images are for representation purposes only
