Description
Brand - ZEN
Item Number - SF205 ZEN
Category - Stainless Steel Pillow Blocks (SF)

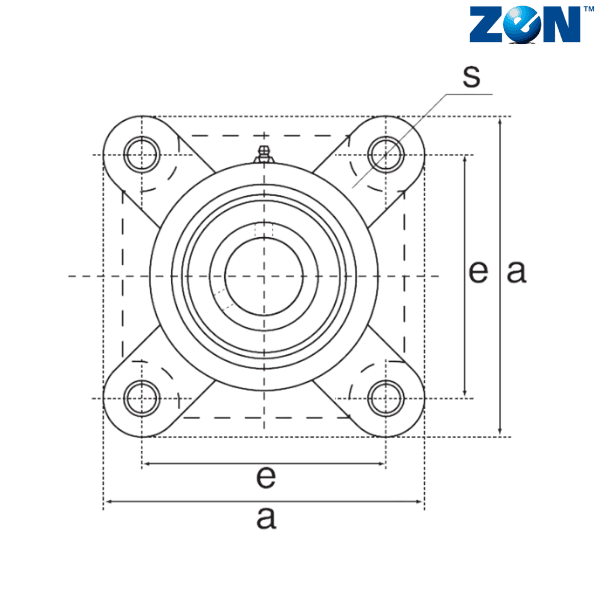

Inner Diameter (d) mm - 25
Overall Length (a) mm - 95
Bolt Center to Center Length (e) mm - 70

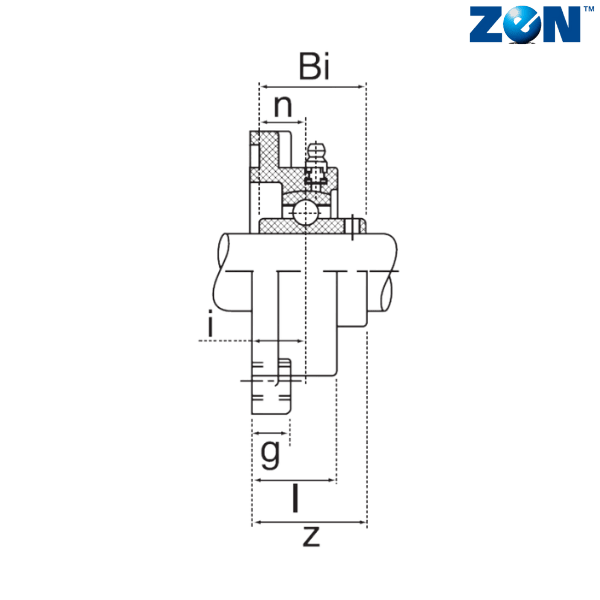

i (mm) - 15.9
l (mm) - 27
g (mm) - 14
s (mm) - 12
z (mm) - 35.8
Weight (kg) - 0.65
Bearing - SUC205

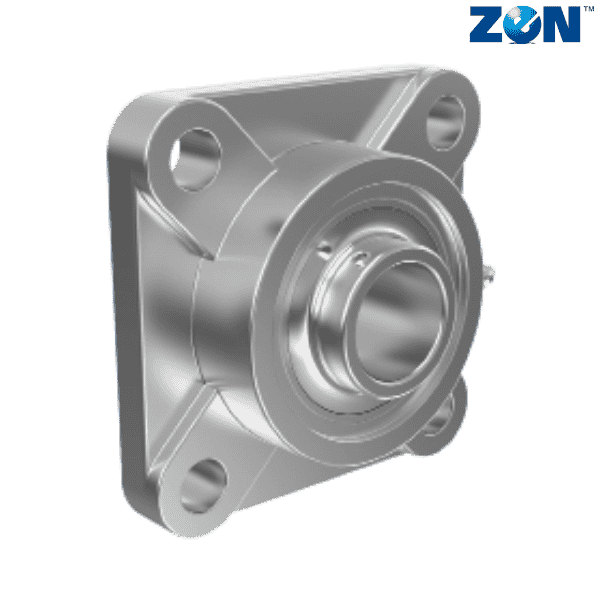

** Images are for representation purposes only
