Description

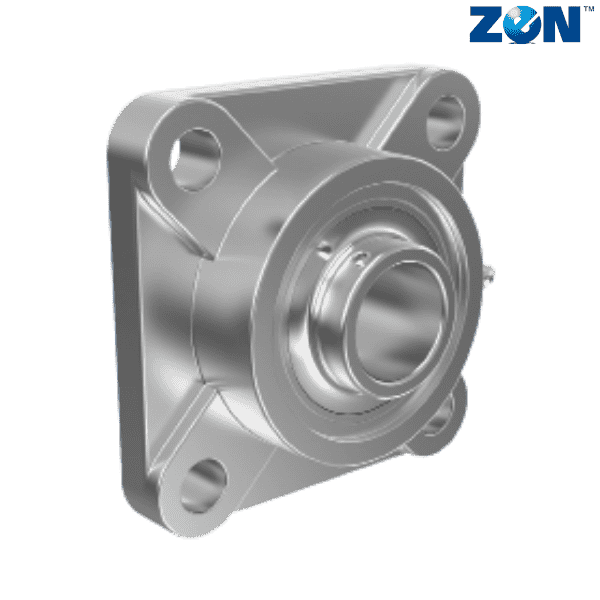

Brand - ZEN
Item Number - SF204 ZEN
Category - Stainless Steel Pillow Blocks (SF)

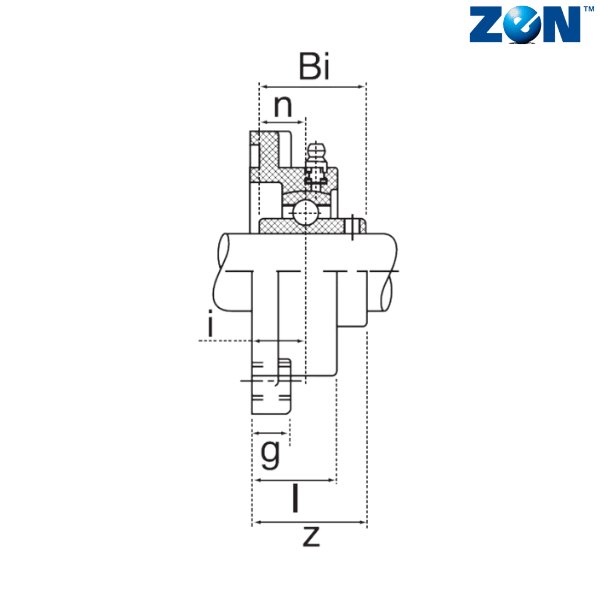

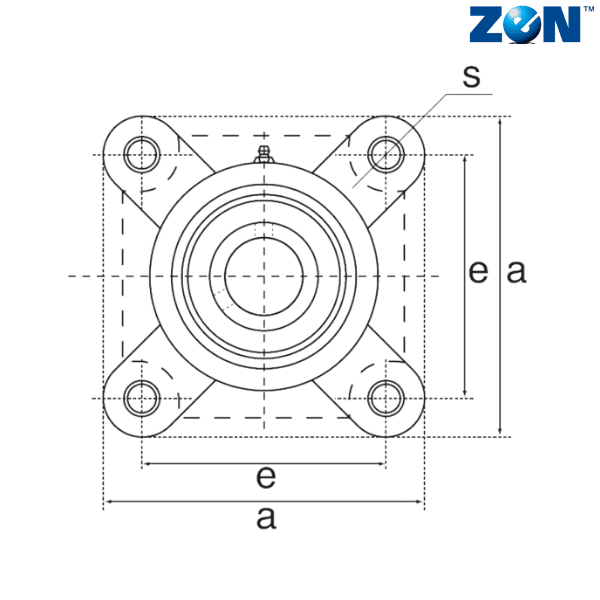

Inner Diameter (d) mm - 20
Overall Length (a) mm - 86
Bolt Center to Center Length (e) mm - 63.5
i (mm) - 15.1
l (mm) - 25.4
g (mm) - 12
s (mm) - 12
z (mm) - 33.3
Weight (kg) - 0.47
Bearing - SUC204
** Images are for representation purposes only
