SF160AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SF160AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

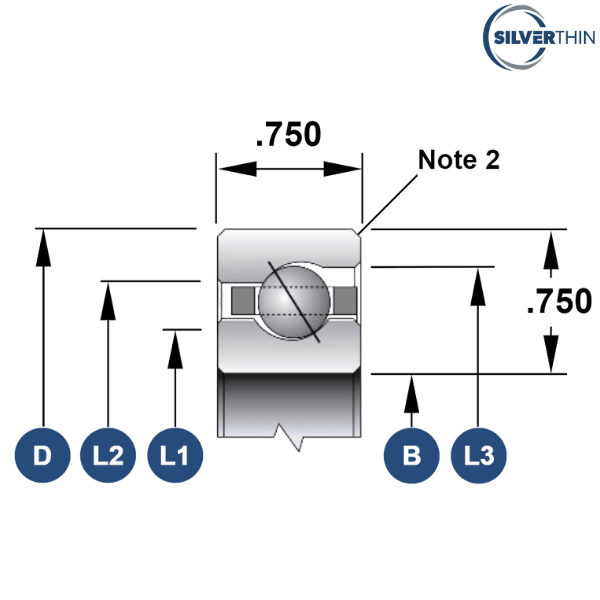

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 16 inch
Outside Diameter (D) - 17.5 inch
Width - 0.75 inch
Land Diameter (L1) - 16.555 inch
Land Diameter (L2) - 16.945 inch
Land Diameter (L3) - 17.098 inch
Approximate Weight - 7.10 lbs
Static Radial Load - 22480 lbf
Dynamic Radial Load - 7565 lbf
Static Thrust Load - 64890 lbf
Dynamic Thrust Load - 19540 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 3.22 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 3/8'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SF160ARO
INA - CSEF160
NSK - NBA40619
RBC - KF160AR0*RBC
KAYDON - KF160AR0
SKF - FPAF1600
NTN - KYF160
FAG - L15VA1600
SSB - RF160AR0

♦ ♦ Images are for representation purposes only
