SF140CP0 RBC

Brand - RBC
Item Number - SF140CP0*RBC
Category - Radial Contact, C-Type Thin Section Ball Bearings

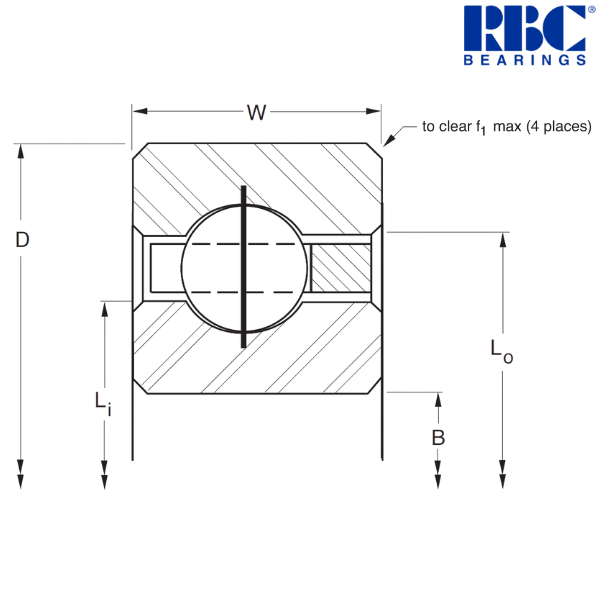

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 14 inch
Outside Diameter (D) - 15.5 inch
Width (W) - 0.75 inch
Land Diameter of Inner Ring (Li) - 14.563 inch
Land Diameter of Outer Ring (Lo) - 14.938 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.375 inch
Ball Quantity - 59 pcs.
Approximate Weight - 6 lbs
Radial Static Load - 16650 lbf
Radial Dynamic Load - 6620 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 355.6 mm
Outside Diameter (D) - 393.7 mm
Width (W) - 19.05 mm
Land Diameter of Inner Ring (Li) - 369.9 mm
Land Diameter of Outer Ring (Lo) - 379.43 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 2.722 kg
Radial Static Load - 74060 N
Radial Dynamic Load - 29450 N

Description of Suffixes and Prefixes :
S - No seals or shields
F - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
