Description
Brand - SILVERTHIN
Item Number - SF120AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)
Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 12 inch
Outside Diameter (D) - 13.5 inch
Width - 0.75 inch
Land Diameter (L1) - 12.555 inch
Land Diameter (L2) - 12.945 inch
Land Diameter (L3) - 13.104 inch
Approximate Weight - 5.20 lbs
Static Radial Load - 17100 lbf
Dynamic Radial Load - 6485 lbf
Static Thrust Load - 49380 lbf
Dynamic Thrust Load - 16290 lbf
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 2.358 kg
Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1
Other salient points to be noted :
• Brass; one piece pocket separator 3/8'' balls
• Load capacities are not additive

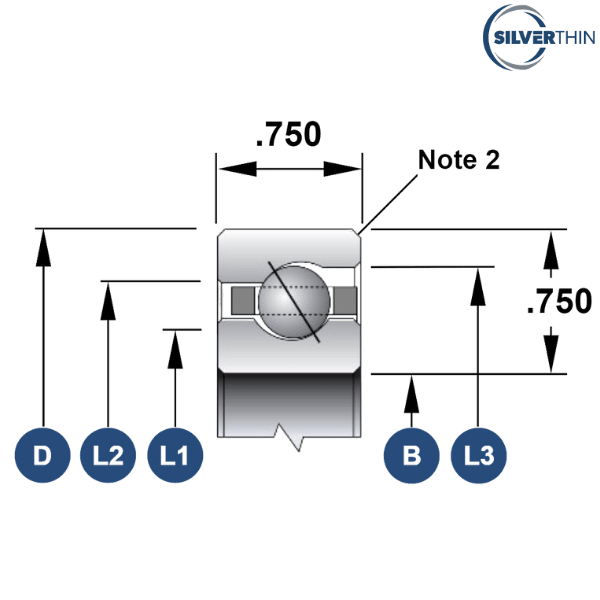

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''
Interchange :
SILVERTHIN - SF120ARO
INA - CSEF120
NSK - NBA30419
RBC - KF120AR0*RBC
KAYDON - KF120AR0
SKF - FPAF1200
NTN - KYF120
FAG - L15VA1200
SSB - RF120AR0
♦ ♦ Images are for representation purposes only
