Description
Brand - SILVERTHIN

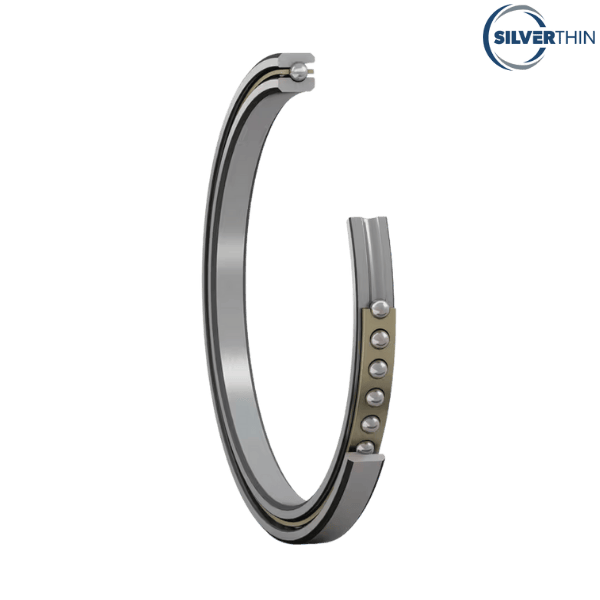

Item Number - SF110AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

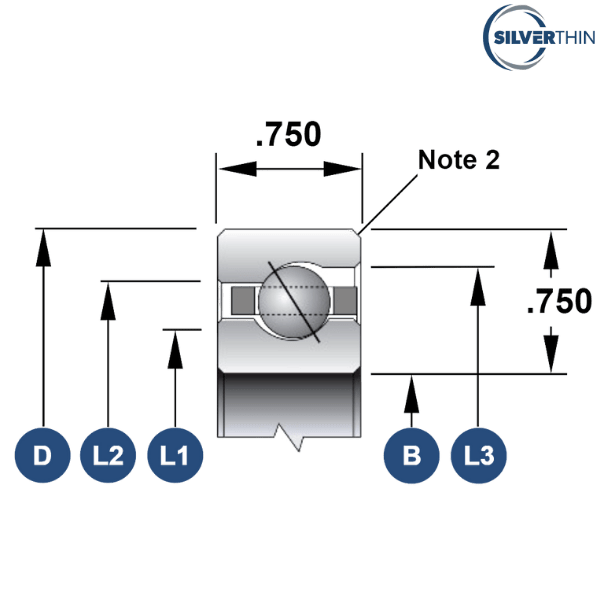

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 11 inch
Outside Diameter (D) - 12.5 inch
Width - 0.75 inch
Land Diameter (L1) - 11.555 inch
Land Diameter (L2) - 11.945 inch
Land Diameter (L3) - 12.106 inch
Approximate Weight - 4.80 lbs
Static Radial Load - 15880 lbf
Dynamic Radial Load - 6225 lbf
Static Thrust Load - 45850 lbf
Dynamic Thrust Load - 15500 lbf
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 2.177 kg
Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1
Other salient points to be noted :
• Brass; one piece pocket separator 3/8'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''
Interchange :
SILVERTHIN - SF110ARO
INA - CSEF110
NSK - NBA27919
RBC - KF110AR0*RBC
KAYDON - KF110AR0
SKF - FPAF1100
NTN - KYF110
FAG - L15VA1100
SSB - RF110AR0
♦ ♦ Images are for representation purposes only
