Description
Brand - SILVERTHIN
Item Number - SF100BR0 SILVERTHIN
Category - Back-to-Back Paired Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Duplexed (Back-to-Back) (Type B)
Seals, Shields - None (Open)
Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 10 inch
Outside Diameter (D) - 11.5 inch
Width - 0.75 inch
Land Diameter (L1) - 10.555 inch
Land Diameter (L3) - 11.106 inch
Approximate Weight - 8.60 lbs
Static Radial Load - 23430 lbf
Dynamic Radial Load - 9570 lbf
Static Thrust Load - 41620 lbf
Dynamic Thrust Load - 14530 lbf
Static Moment Load - 100370 in-lbs
Dynamic Moment Load - 41060 in-lbs
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 3.9 kg
Description of Suffixes :
B - Duplexed Back to Back
R - Brass, one piece circular pocket A
0 - ABEC Class 1
Other salient points to be noted :
• Brass; one piece pocket separator 3/8'' balls
• Load capacities are not additive

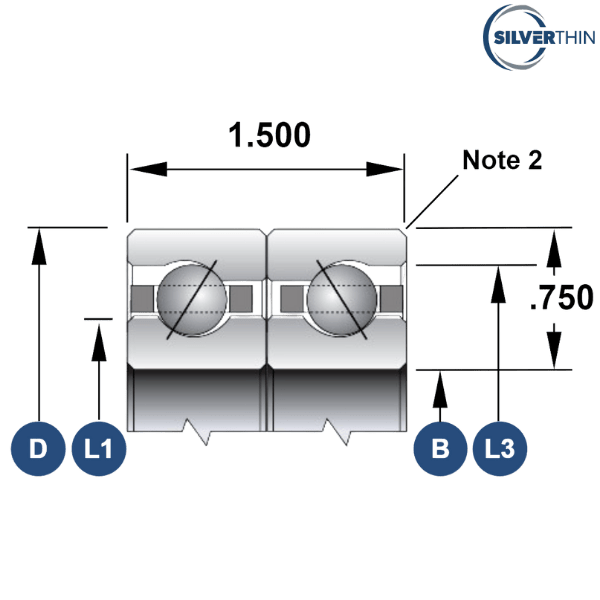

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.010''

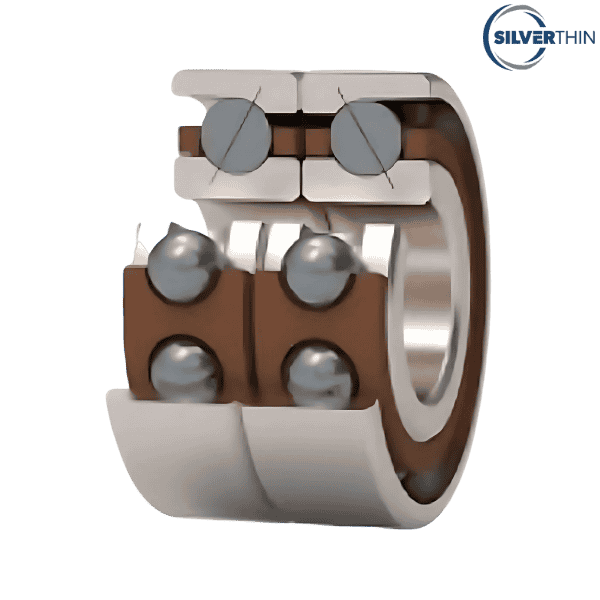

♦ ♦ Images are for representation purposes only
