SF070CP0 RBC

Brand - RBC
Item Number - SF070CP0*RBC
Category - Radial Contact, C-Type Thin Section Ball Bearings

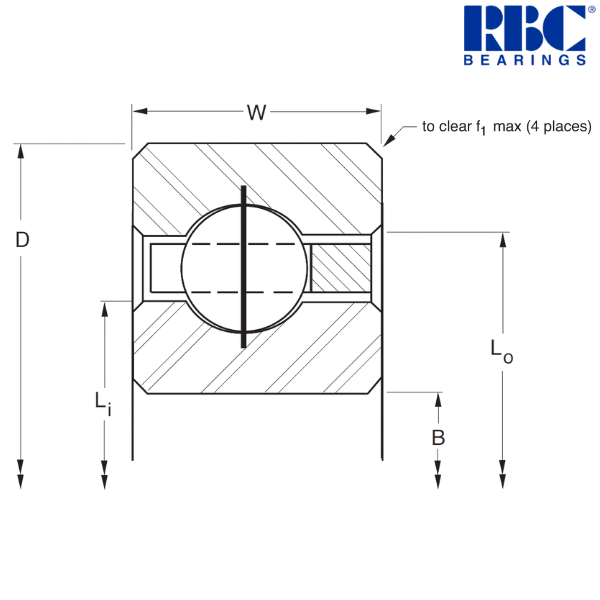

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7 inch
Outside Diameter (D) - 8.5 inch
Width (W) - 0.75 inch
Land Diameter of Inner Ring (Li) - 7.563 inch
Land Diameter of Outer Ring (Lo) - 7.938 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.375 inch
Ball Quantity - 31 pcs.
Approximate Weight - 3.2 lbs
Radial Static Load - 8750 lbf
Radial Dynamic Load - 4920 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 177.8 mm
Outside Diameter (D) - 215.9 mm
Width (W) - 19.05 mm
Land Diameter of Inner Ring (Li) - 192.1 mm
Land Diameter of Outer Ring (Lo) - 201.63 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 1.451 kg
Radial Static Load - 38920 N
Radial Dynamic Load - 21890 N

Description of Suffixes and Prefixes :
S - No seals or shields
F - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
