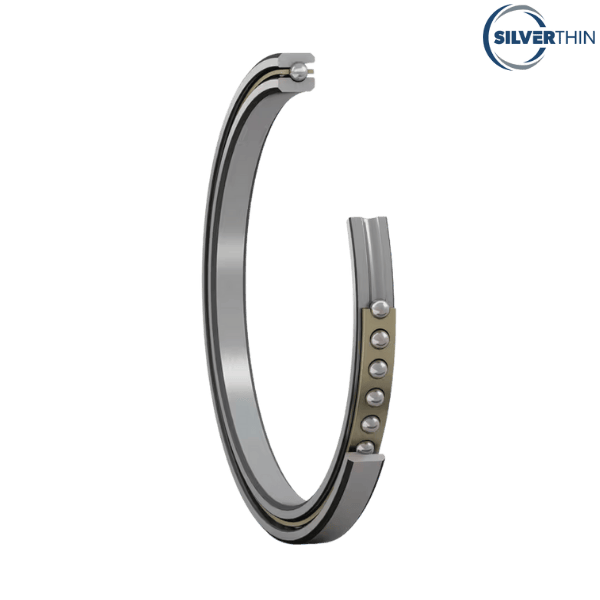

SF055AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SF055AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5.5 inch
Outside Diameter (D) - 7 inch
Width - 0.75 inch
Land Diameter (L1) - 6.055 inch
Land Diameter (L2) - 6.445 inch
Land Diameter (L3) - 6.613 inch
Approximate Weight - 2.50 lbs
Static Radial Load - 8310 lbf
Dynamic Radial Load - 4320 lbf
Static Thrust Load - 23980 lbf
Dynamic Thrust Load - 10060 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.134 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 3/8'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SF055ARO
INA - CSEF055
NSK - NBA13919
RBC - KF055AR0*RBC
KAYDON - KF055AR0
SKF - FPAF508
NTN - KYF055
FAG - L15VA508
SSB - RF055AR0

♦ ♦ Images are for representation purposes only
