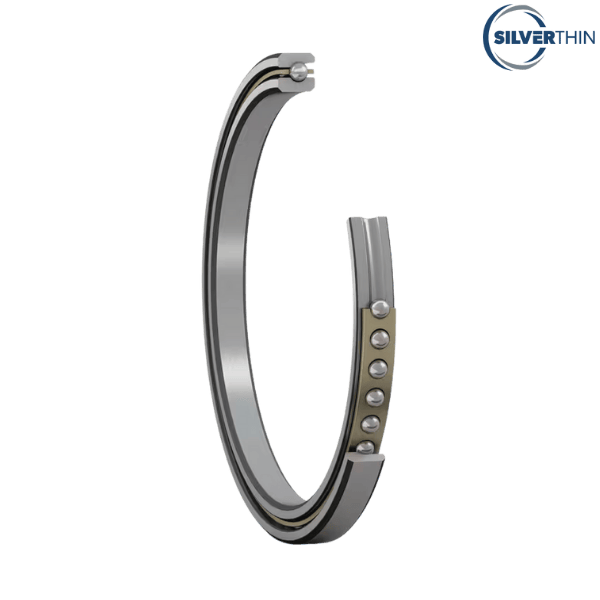

SF050AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SF050AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

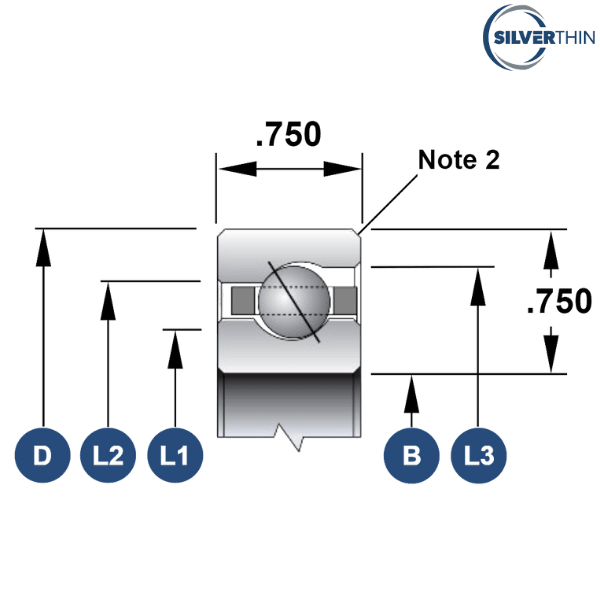

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5 inch
Outside Diameter (D) - 6.5 inch
Width - 0.75 inch
Land Diameter (L1) - 5.555 inch
Land Diameter (L2) - 5.945 inch
Land Diameter (L3) - 6.115 inch
Approximate Weight - 2.30 lbs
Static Radial Load - 7570 lbf
Dynamic Radial Load - 4100 lbf
Static Thrust Load - 21870 lbf
Dynamic Thrust Load - 9460 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.043 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 3/8'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SF050ARO
INA - CSEF050
NSK - NBA12719
RBC - KF050AR0*RBC
KAYDON - KF050AR0
SKF - FPAF500
NTN - KYF050
FAG - L15VA500
SSB - RF050AR0

♦ ♦ Images are for representation purposes only
