SF045AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SF045AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

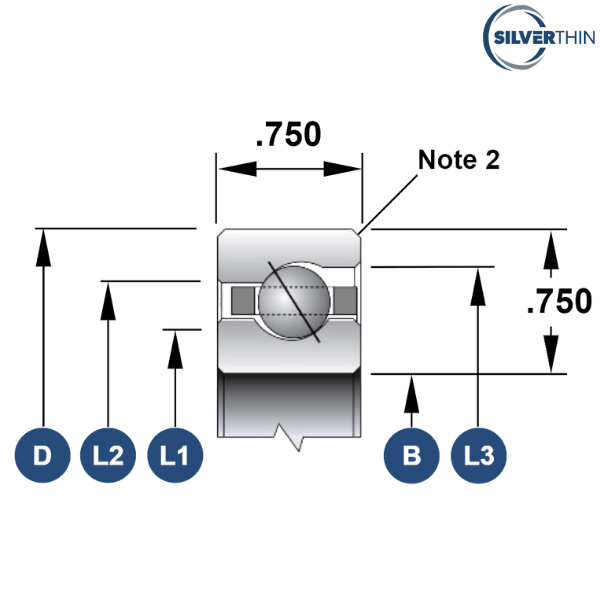

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.5 inch
Outside Diameter (D) - 6 inch
Width - 0.75 inch
Land Diameter (L1) - 5.06 inch
Land Diameter (L2) - 5.445 inch
Land Diameter (L3) - 5.615 inch
Approximate Weight - 2.10 lbs
Static Radial Load - 7090 lbf
Dynamic Radial Load - 3965 lbf
Static Thrust Load - 20460 lbf
Dynamic Thrust Load - 9050 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.952 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 3/8'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SF045ARO
INA - CSEF045
NSK - NBA11409
RBC - KF045AR0*RBC
KAYDON - KF045AR0
SKF - FPAF408
NTN - KYF045
FAG - L15VA408
SSB - RF045AR0

♦ ♦ Images are for representation purposes only
