SF 5 .40 UNIBAL


Country of Origin: SWITZERLAND
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - UNIBAL
Item Number - SF 5 .40 UNIBAL
Also Known As - SF5.40
Category - Rod-End Bearings with Maintenance in High Tensile Series

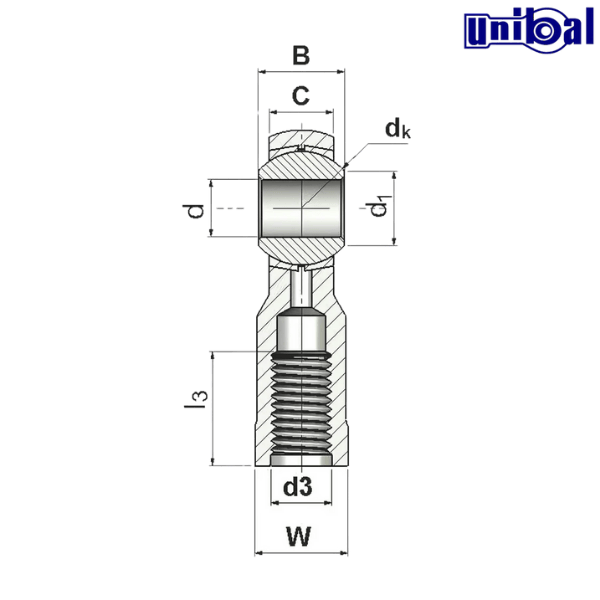

Bore Diameter with Tolerance H7 (d) mm - 5
Width (B) mm - 8 (0 or -0.05)
Width of the Cage or Mount (C) mm - 6 (± 0.2)
Diameter of the Sphere (dk) mm - 11.11
Diameter of Flat (d1) mm - 7.71
d2 (mm) - 16
d3 with Tolerance 6H (mm) - M5 x0.8
d5 (mm) - 9.5
C4 (mm) - 7.5
h1 (mm) - 27
l3 (mm) - 12.5 (± 0.5)
l4 (mm) - 35
l5 (mm) - 4
W (mm) - 8
Basic Static Loading (C0) daN - 990
Weight (kg) - 0.014

Suffix Description :
.40 - High Tensile

** Images are for representation purposes only
