Description
Brand - RINGSPANN
Part Number - SF 37-14.5 P RINGSPANN
Category - Cage Freewheels SF...P (Standard Type P)
Principal Dimensions & Specifications (Metric):
Theoretical Nominal Torque - 230 Nm
Nominal Torque at Existing Run Out (T.I.R.) - 210 Nm
Nominal Torque at Existing Run Out (T.I.R.) - 200 Nm
Nominal Torque at Existing Run Out (T.I.R.) - 200 Nm

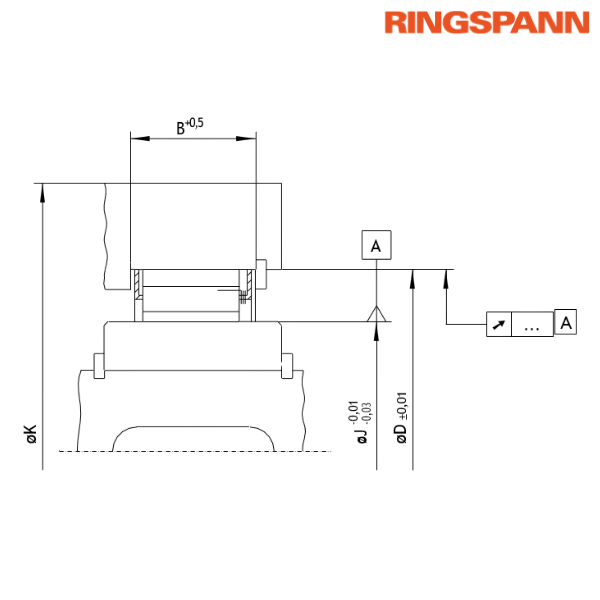

Dimension (J) - 37 mm
Dimension (D) - 55 mm
Dimension (B) - 14.5 mm
Dimension (K) - 75 mm
Sprags - 14 Pcs.
Weight - 0.06 kg
Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified Nominal torque
• The theoretical nominal torque applies only for ideal concentricity between the inner and outer ring. In practice, the concentricity is affected by the bearing play and centering errors of the neighbouring parts. Then the Nominal torques specified in the table apply, whilst taking into consideration the existing run out (T.I.R.)
• For assembly with inner and outer ring for high run out (T.I.R.), with sprags
Features:

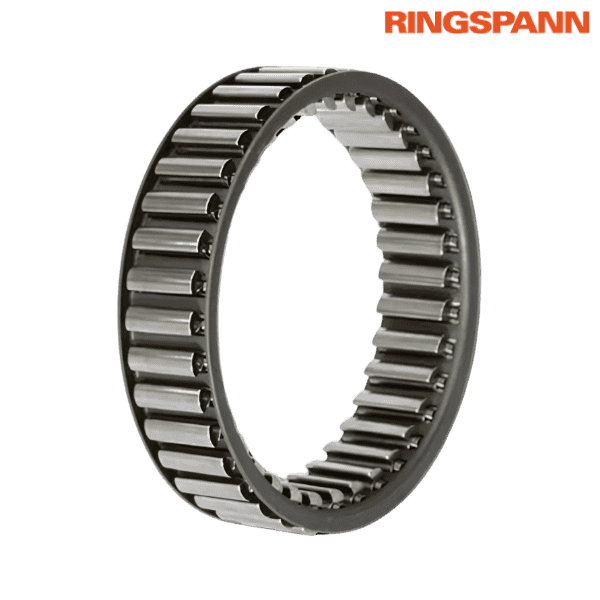

• Cage Freewheels SF … P are sprag freewheels designed to be installed between customer-supplied inner and outer rings
• Capable of handling nominal torques up to 5,800 Nm
Application as: Backstop, Overrunning Clutch, Indexing Freewheel
Mounting:
• Lateral guidance of the Cage Freewheels can be provided either by a shoulder on the outer ring or by using guard rings or guard discs fixed to the outer ring
• The torque transmission capacity can be increased by arranging multiple cages side by side
• For such configurations, it is advised to consult RINGSPANN regarding the maximum transmissible torque
• It is important to review the technical points on page 102 related to the proper preparation of the sprag tracks
♦ ♦ Images are for representation purposes only
