Description
Brand - RINGSPANN
Part Number - SF 170-63 ST RINGSPANN
Category - Cage Freewheels SF
Principal Dimensions & Specifications (Metric):

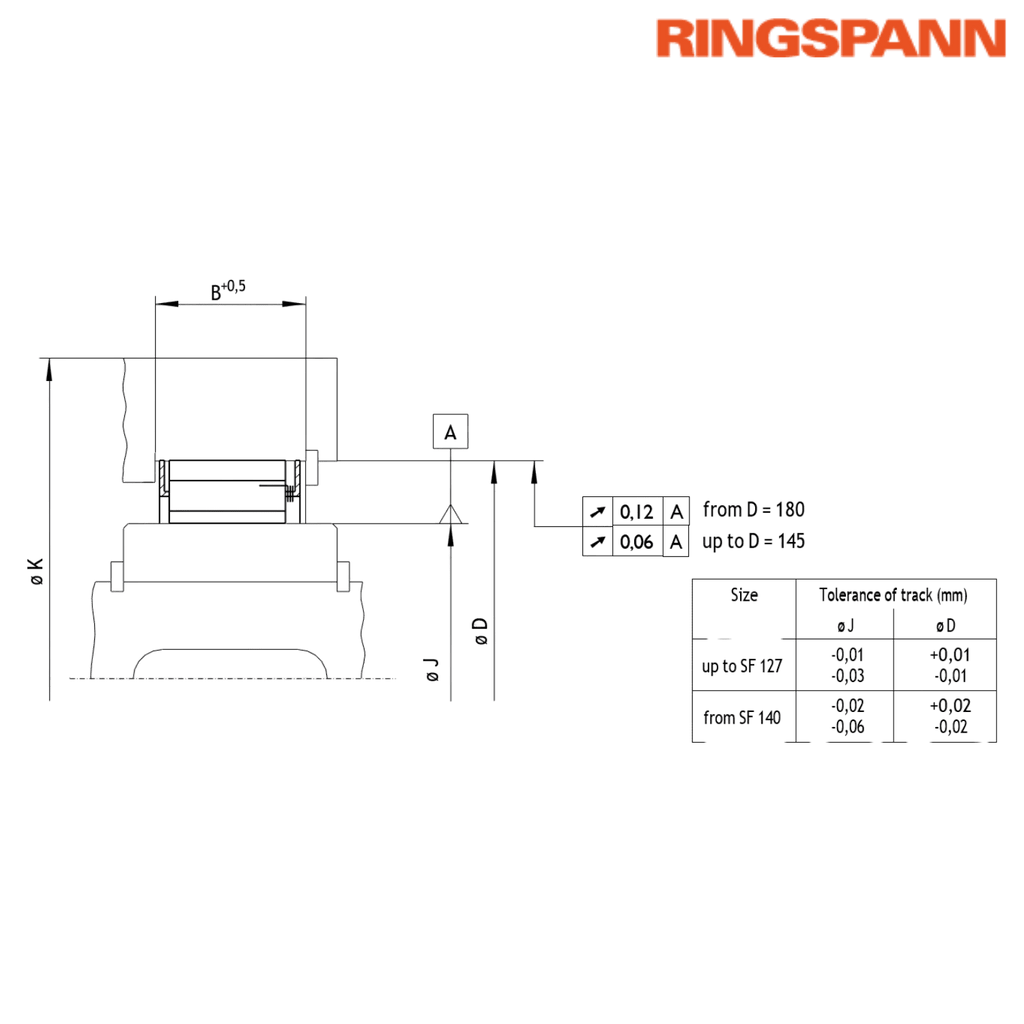

Dimension (J) - 170 mm
Dimension (D) - 210 mm
Dimension (B) - 63 mm
Dimension (K) - 290 mm
Sprags - 28 Pcs.
Weight - 2.4 kg
Type with RIDUVIT® for Extended Service Life with using Coated Sprags (ST Type):
Nominal Torque (MN) - 23000 Nm
Other salient points to be noted:
• The maximum transmissible torque is 2 times the specified Nominal torque
• Assembly with inner and outer ring with sprags, available in three types
Features:

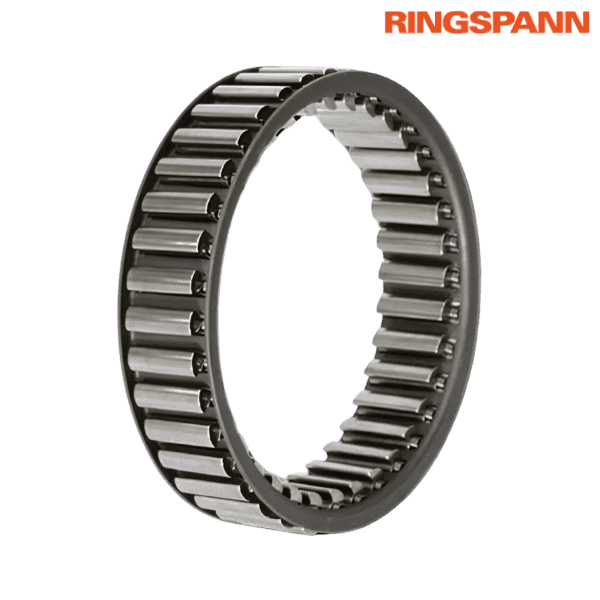

• Cage Freewheels SF are sprag freewheels designed to be installed between customer-supplied inner and outer rings
• Besides the standard type, two additional types are available for extended service life
• Capable of handling nominal torques up to 93,000 Nm
Application as: Backstop, Overrunning Clutch, Indexing Freewheel
Mounting:
• Lateral guidance of Cage Freewheels can be provided either by a shoulder on the outer ring or by using guard rings or guard discs fixed to the outer ring
• For such configurations, it is recommended to consult RINGSPANN regarding the transmissible torque limits
• Be sure to review the technical notes on page 102 for important guidelines concerning the sprag tracks
