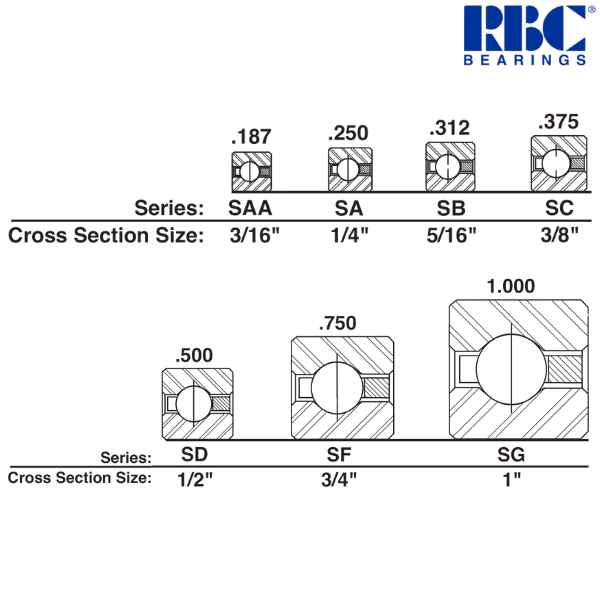

SD160CP0 RBC

Brand - RBC
Item Number - SD160CP0*RBC
Category - Radial Contact, C-Type Thin Section Ball Bearings

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 16 inch
Outside Diameter (D) - 17 inch
Width (W) - 0.5 inch
Land Diameter of Inner Ring (Li) - 16.375 inch
Land Diameter of Outer Ring (Lo) - 16.625 inch
Housing Fillet (f1) - 0.06 inch
Ball Diameter - 0.25 inch
Ball Quantity - 99 pcs.
Approximate Weight - 3.1 lbs
Radial Static Load - 11290 lbf
Radial Dynamic Load - 3688 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 406.4 mm
Outside Diameter (D) - 431.8 mm
Width (W) - 12.7 mm
Land Diameter of Inner Ring (Li) - 415.93 mm
Land Diameter of Outer Ring (Lo) - 422.28 mm
Housing Fillet (f1) - 1.52 mm
Approximate Weight - 1.406 kg
Radial Static Load - 50220 N
Radial Dynamic Load - 16410 N

Description of Suffixes and Prefixes :
S - No seals or shields
D - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
