SD160AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SD160AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 16 inch
Outside Diameter (D) - 17 inch
Width - 0.5 inch
Land Diameter (L1) - 16.37 inch
Land Diameter (L2) - 16.63 inch
Land Diameter (L3) - 16.718 inch
Approximate Weight - 3.10 lbs
Static Radial Load - 13030 lbf
Dynamic Radial Load - 3855 lbf
Static Thrust Load - 37620 lbf
Dynamic Thrust Load - 10130 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.406 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 1/4'' balls
• Load capacities are not additive

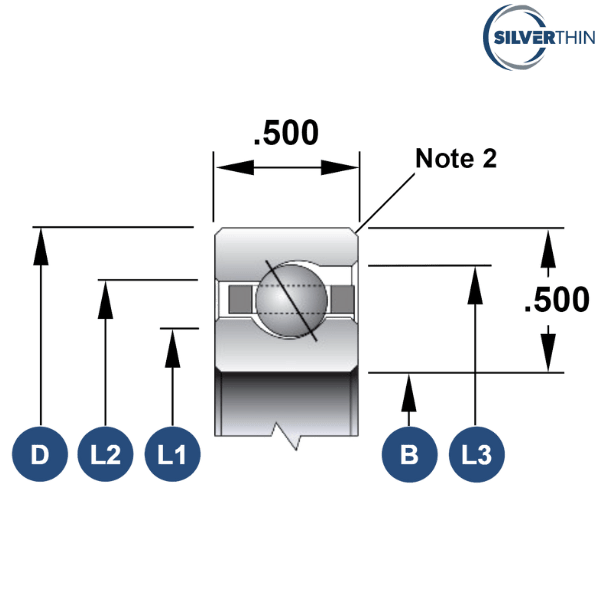

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.060'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SD160ARO
INA - CSED160
NSK - NBA40612
RBC - KD160AR0*RBC
KAYDON - KD160AR0
SKF - FPAD1600
NTN - KYD160
FAG - L15TA1600
SSB - RD160AR0

♦ ♦ Images are for representation purposes only
