SD120CP0 RBC

Brand - RBC
Item Number - SD120CP0*RBC

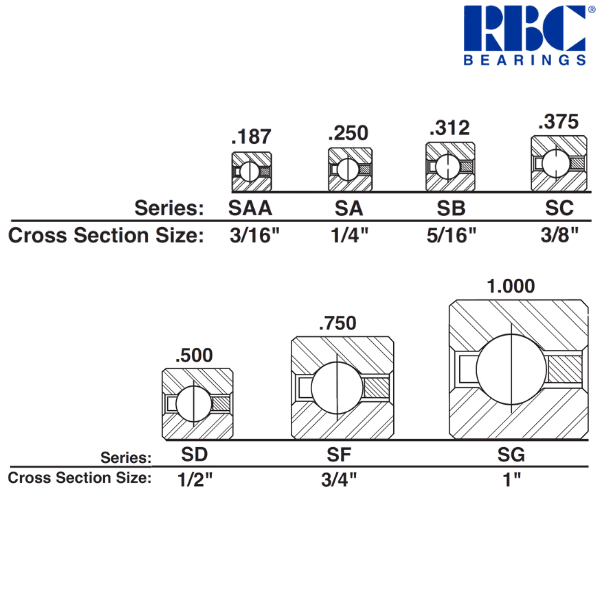

Category - Radial Contact, C-Type Thin Section Ball Bearings

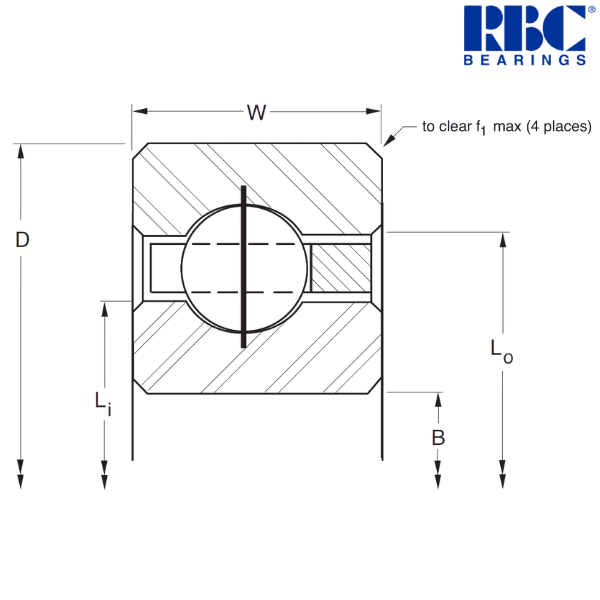

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 12 inch
Outside Diameter (D) - 13 inch
Width (W) - 0.5 inch
Land Diameter of Inner Ring (Li) - 12.375 inch
Land Diameter of Outer Ring (Lo) - 12.625 inch
Housing Fillet (f1) - 0.06 inch
Ball Diameter - 0.25 inch
Ball Quantity - 75 pcs.
Approximate Weight - 2.25 lbs
Radial Static Load - 8550 lbf
Radial Dynamic Load - 3320 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 304.8 mm
Outside Diameter (D) - 330.2 mm
Width (W) - 12.7 mm
Land Diameter of Inner Ring (Li) - 314.33 mm
Land Diameter of Outer Ring (Lo) - 320.68 mm
Housing Fillet (f1) - 1.52 mm
Approximate Weight - 1.021 kg
Radial Static Load - 38030 N
Radial Dynamic Load - 14770 N

Description of Suffixes and Prefixes :
S - No seals or shields
D - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
