SD110AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SD110AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

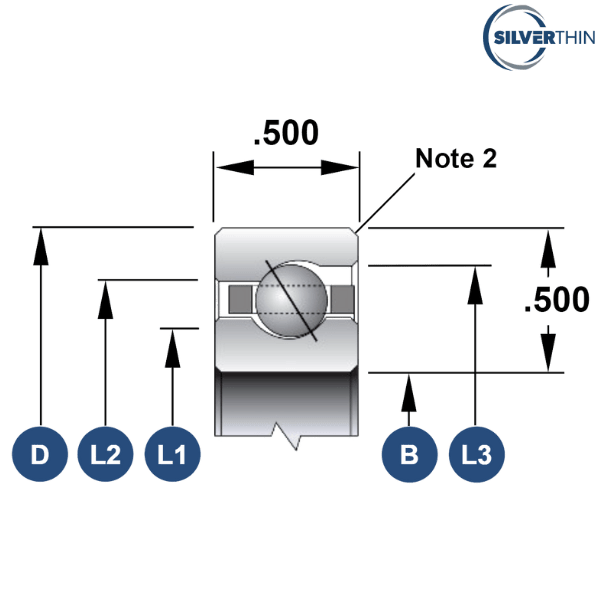

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 11 inch
Outside Diameter (D) - 12 inch
Width - 0.5 inch
Land Diameter (L1) - 11.37 inch
Land Diameter (L2) - 11.63 inch
Land Diameter (L3) - 11.73 inch
Approximate Weight - 2.06 lbs
Static Radial Load - 9080 lbf
Dynamic Radial Load - 3135 lbf
Static Thrust Load - 26220 lbf
Dynamic Thrust Load - 7960 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.934 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 1/4'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.060'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SD110ARO
INA - CSED110
NSK - NBA27912
RBC - KD110AR0*RBC
KAYDON - KD110AR0
SKF - FPAD1100
NTN - KYD110
FAG - L15TA1100
SSB - RD110AR0
