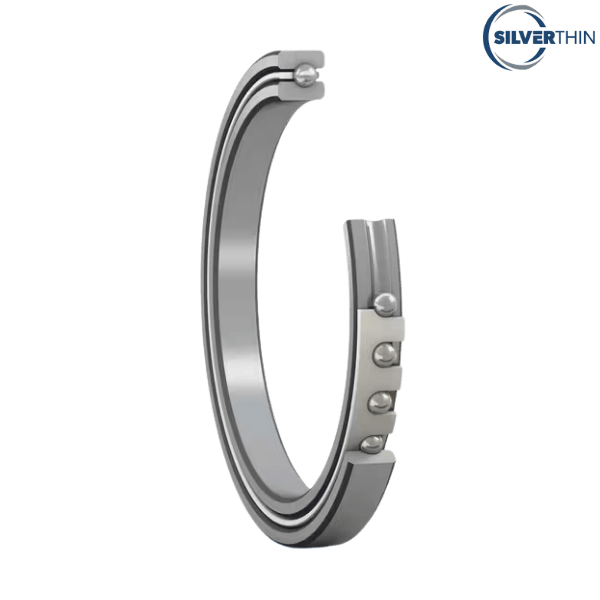

SD100XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SD100XP0 SILVERTHIN
Category - Open Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 10 inch
Outside Diameter (D) - 11 inch
Width - 0.5 inch
Land Diameter (L1) - 10.37 inch
Land Diameter (L2) - 10.63 inch
Approximate Weight - 1.88 lbs
Static Radial Load - 7180 lbf
Dynamic Radial Load - 3775 lbf
Static Thrust Load - 17960 lbf
Dynamic Thrust Load - 6190 lbf
Static Moment Load - 37710 in-lbs
Dynamic Moment Load - 14870 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.88 lbs

Description of Suffixes :
X - 4 Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 1/4'' balls
• Load capacities are not additive

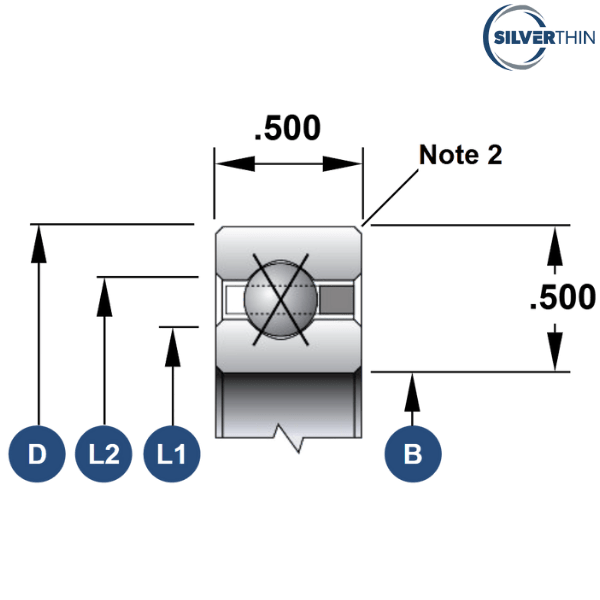

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.060'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SD100XPO
INA - CSXD100
NSK - NBX25412
RBC - KD100XP0*RBC
KAYDON - KD100XP0
SKF - FPXD1000
NTN - KXD100
FAG - L18TA1000
SSB - RD100XP0

♦ ♦ Images are for representation purposes only
