Description
Brand - SILVERTHIN
Item Number - SD080BR0 SILVERTHIN

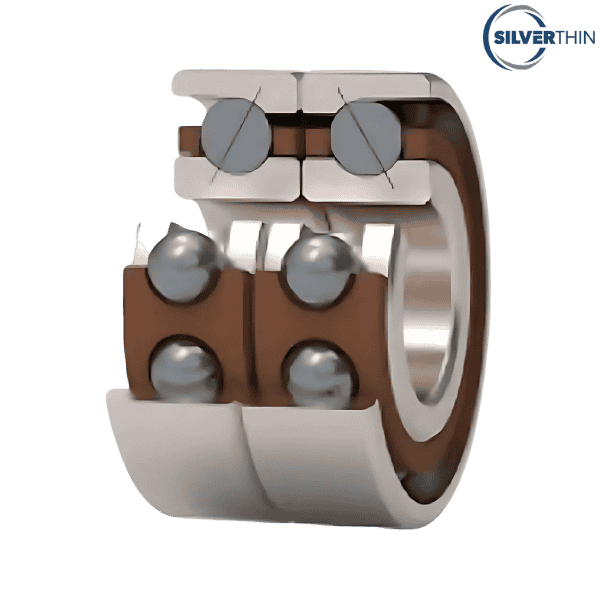

Category - Back-to-Back Paired Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Duplexed (Back-to-Back) (Type B)
Seals, Shields - None (Open)
Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 8 inch
Outside Diameter (D) - 9 inch
Width - 0.5 inch
Land Diameter (L1) - 8.37 inch
Land Diameter (L3) - 8.734 inch
Approximate Weight - 3.06 lbs
Static Radial Load - 10900 lbf
Dynamic Radial Load - 4260 lbf
Static Thrust Load - 19380 lbf
Dynamic Thrust Load - 6510 lbf
Static Moment Load - 36305 in-lbs
Dynamic Moment Load - 14215 in-lbs
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.388 kg
Description of Suffixes :
B - Duplexed Back to Back
R - Brass, one piece circular pocket A
0 - ABEC Class 1
Other salient points to be noted :
• Brass; one piece pocket separator 1/4'' balls
• Load capacities are not additive

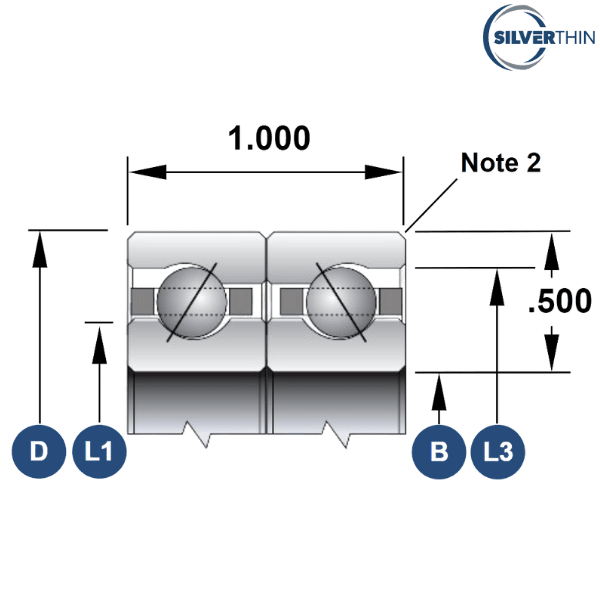

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.060'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.010''
♦ ♦ Images are for representation purposes only
