SD080AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SD080AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 8 inch
Outside Diameter (D) - 9 inch
Width - 0.5 inch
Land Diameter (L1) - 8.37 inch
Land Diameter (L2) - 8.63 inch
Land Diameter (L3) - 8.734 inch
Approximate Weight - 1.53 lbs
Static Radial Load - 6710 lbf
Dynamic Radial Load - 2625 lbf
Static Thrust Load - 19380 lbf
Dynamic Thrust Load - 6510 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.694 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 1/4'' balls
• Load capacities are not additive

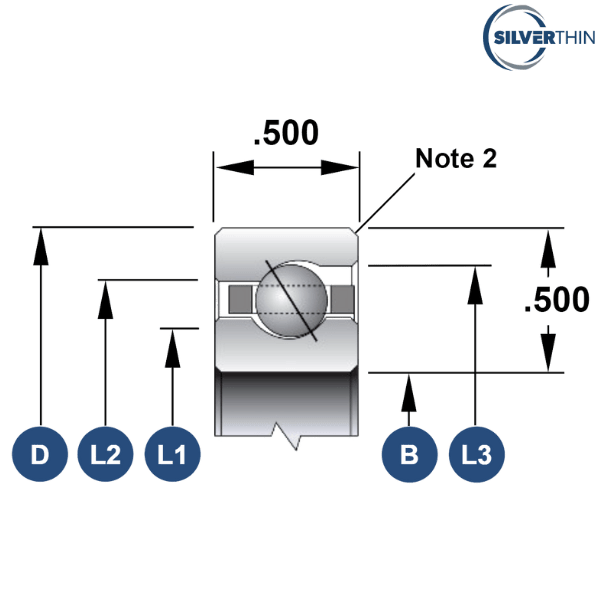

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.060'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SD080ARO
INA - CSED080
NSK - NBA20312
RBC - KD080AR0*RBC
KAYDON - KD080AR0
SKF - FPAD800
NTN - KYD080
FAG - L15TA800
SSB - RD080AR0

♦ ♦ Images are for representation purposes only
