SD070AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SD070AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7 inch
Outside Diameter (D) - 8 inch
Width - 0.5 inch
Land Diameter (L1) - 7.37 inch
Land Diameter (L2) - 7.63 inch
Land Diameter (L3) - 7.736 inch
Approximate Weight - 1.31 lbs
Static Radial Load - 5920 lbf
Dynamic Radial Load - 2440 lbf
Static Thrust Load - 17100 lbf
Dynamic Thrust Load - 5990 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.594 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 1/4'' balls
• Load capacities are not additive

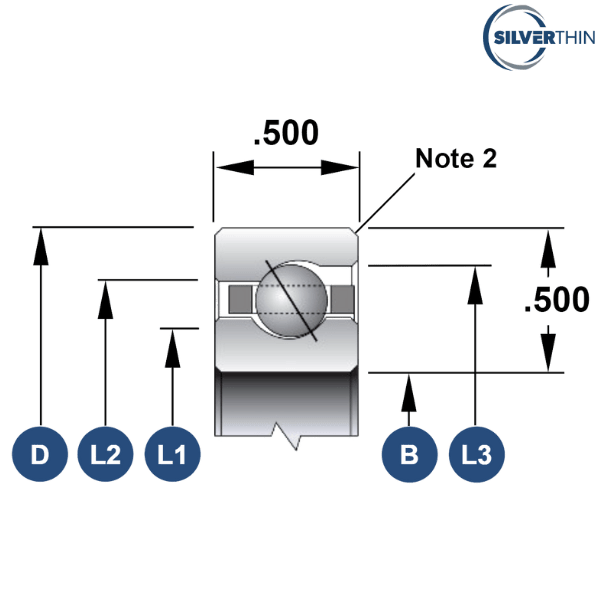

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.060'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SD070ARO
INA - CSAD070
NSK - NBA17712
RBC - KD070AR0*RBC
KAYDON - KD070AR0
SKF - FPAD700
NTN - KYD070
FAG - L15TA700
SSB - RD070AR0

♦ ♦ Images are for representation purposes only
