SD055AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SD055AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5.5 inch
Outside Diameter (D) - 6.5 inch
Width - 0.5 inch
Land Diameter (L1) - 5.87 inch
Land Diameter (L2) - 6.13 inch
Land Diameter (L3) - 6.238 inch
Approximate Weight - 1.06 lbs
Static Radial Load - 4740 lbf
Dynamic Radial Load - 2145 lbf
Static Thrust Load - 13680 lbf
Dynamic Thrust Load - 5160 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.481 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 1/4'' balls
• Load capacities are not additive

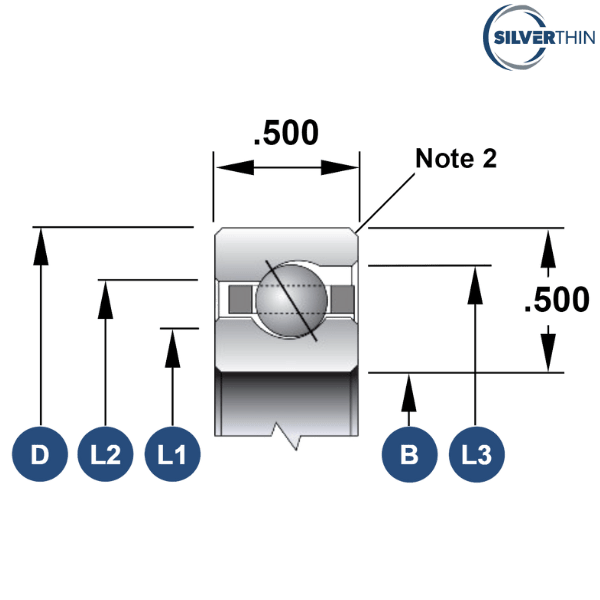

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.060'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SD055ARO
INA - CSAD055
NSK - NBA13912
RBC - KD055AR0*RBC
KAYDON - KD055AR0
SKF - FPAD508
NTN - KYD055
FAG - L15TA508
SSB - RD055AR0

♦ ♦ Images are for representation purposes only
