SD050AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SD050AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5 inch
Outside Diameter (D) - 6 inch
Width - 0.5 inch
Land Diameter (L1) - 5.37 inch
Land Diameter (L2) - 5.63 inch
Land Diameter (L3) - 5.74 inch
Approximate Weight - 1.00 lbs
Static Radial Load - 4340 lbf
Dynamic Radial Load - 2040 lbf
Static Thrust Load - 12540 lbf
Dynamic Thrust Load - 4870 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.454 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 1/4'' balls
• Load capacities are not additive

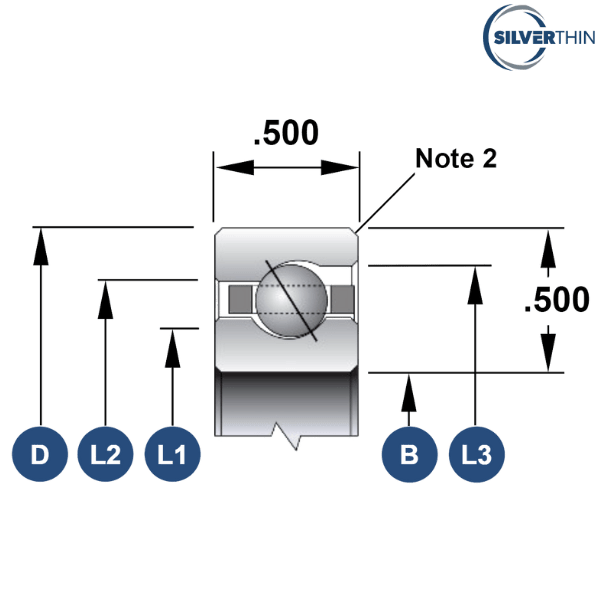

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.060'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SD050ARO
INA - CSAD050
NSK - NBA12712
RBC - KD050AR0*RBC
KAYDON - KD050AR0
SKF - FPAD500
NTN - KYD050
FAG - L15TA500
SSB - RD050AR0

♦ ♦ Images are for representation purposes only
