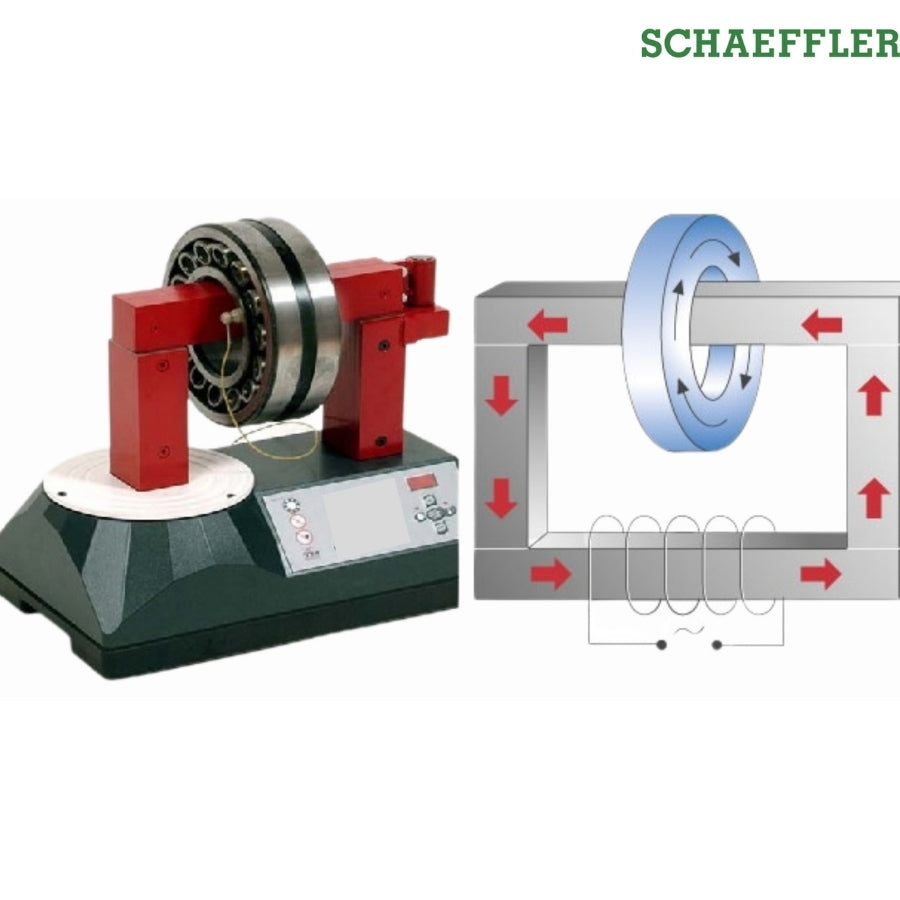

Schaeffler Bearing Induction Heater HEATER400

Download Data Sheet

Operating voltage: 400V

Power consumption: 12.8 kVA

Max. workpiece weight (Rolling Bearing): 400 kg

Variant

Price:

₹ 681,981.00 ₹ 1,136,636.00

Quantity:

Share this product

Operating Voltage	400V
Frequency	50 - 60 Hz
Power Consumption	12.8 kVA
Current Rating	32A
Residual Magnetism	< 2 A/cm
Dimension	850x420x950 mm
Weight	157 kg
Maximum Workpiece Weight	400 kg (rolling bearing)
Maximum Workpiece Weight	300 kg (other component)
Minimum Inner Diameter Workpiece	120 mm
Maximum Outer Diameter Workpiece	1000 mm

Description
