Description
Brand - SILVERTHIN
Item Number - SC250BR0 SILVERTHIN

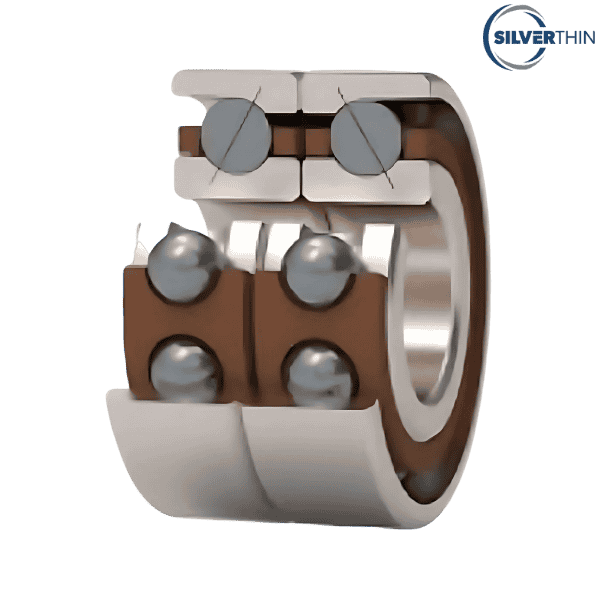

Category - Back-to-Back Paired Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Duplexed (Back-to-Back) (Type B)
Seals, Shields - None (Open)
Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 25 inch
Outside Diameter (D) - 25.75 inch
Width - 0.375 inch
Land Diameter (L1) - 25.277 inch
Land Diameter (L3) - 25.5 inch
Approximate Weight - 5.38 lbs
Static Radial Load - 24210 lbf
Dynamic Radial Load - 5250 lbf
Static Thrust Load - 43280 lbf
Dynamic Thrust Load - 9010 lbf
Static Moment Load - 225490 in-lbs
Dynamic Moment Load - 48770 in-lbs
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 2.44 kg
Description of Suffixes :
B - Duplexed Back to Back
R - Brass, one piece circular pocket A
0 - ABEC Class 1
Other salient points to be noted :
• Brass; one piece pocket separator 3/16'' balls
• Load capacities are not additive

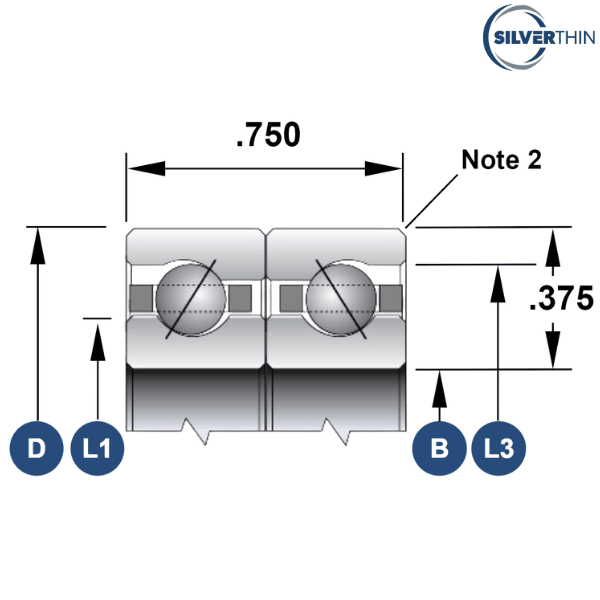

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.010''
♦ ♦ Images are for representation purposes only
Item Number - SC250BR0 SILVERTHIN
Category - Back-to-Back Paired Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Duplexed (Back-to-Back) (Type B)
Seals, Shields - None (Open)
Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 25 inch
Outside Diameter (D) - 25.75 inch
Width - 0.375 inch
Land Diameter (L1) - 25.277 inch
Land Diameter (L3) - 25.5 inch
Approximate Weight - 5.38 lbs
Static Radial Load - 24210 lbf
Dynamic Radial Load - 5250 lbf
Static Thrust Load - 43280 lbf
Dynamic Thrust Load - 9010 lbf
Static Moment Load - 225490 in-lbs
Dynamic Moment Load - 48770 in-lbs
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 2.44 kg
Description of Suffixes :
B - Duplexed Back to Back
R - Brass, one piece circular pocket A
0 - ABEC Class 1
Other salient points to be noted :
• Brass; one piece pocket separator 3/16'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.010''
♦ ♦ Images are for representation purposes only
