Description
Brand - IKO
Item Number - SBB 96-2RS IKO
Also Known As - SBB96-2RS
Category - Steel-on-Steel Spherical Bushings Inch Series
Shaft Diameter (mm) - 152.4
Shaft Diameter (inch) - 6
Bore Diameter (d) mm - 152.4
Bore Diameter (d) inch - 6
Outer Diameter (D) mm - 222.25
Outer Diameter (D) inch - 8.75
Width (B) mm - 120.65
Width (B) inch - 4.75
Boundary Dimension (C) mm - 104.78
Boundary Dimension (C) inch - 4.125
Boundary Dimension (dk) mm - 207
Boundary Dimension (dk) inch - 8.15
Minimum Radial Internal Clearance (mm) - 0.13
Maximum Radial Internal Clearance (mm) - 0.23
Mounting Dimension (d1) mm - 167.5
Maximum Mounting Dimension (ras) mm - 0.8
Maximum Mounting Dimension (rbs) mm - 1.1
Dynamic Load Capacity (Cb) N - 2130000
Static Load Capacity (Cs) N - 12800000
Weight (kg) - 17.6
Bearing without Seals - SBB 96

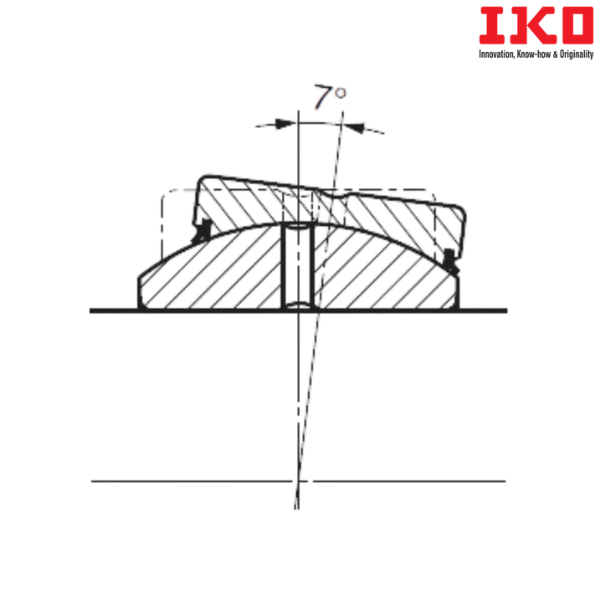

** Images are for representation purposes only
