Description
Brand - IKO
Item Number - SBB 80-2RS IKO
Also Known As - SBB80-2RS
Category - Steel-on-Steel Spherical Bushings Inch Series
Shaft Diameter (mm) - 127
Shaft Diameter (inch) - 5
Bore Diameter (d) mm - 127
Bore Diameter (d) inch - 5
Outer Diameter (D) mm - 196.85
Outer Diameter (D) inch - 7.75
Width (B) mm - 111.12
Width (B) inch - 4.375
Boundary Dimension (C) mm - 95.25
Boundary Dimension (C) inch - 3.75
Boundary Dimension (dk) mm - 183
Boundary Dimension (dk) inch - 7.205
Minimum Radial Internal Clearance (mm) - 0.13
Maximum Radial Internal Clearance (mm) - 0.23
Mounting Dimension (d1) mm - 144.9
Maximum Mounting Dimension (ras) mm - 0.8
Maximum Mounting Dimension (rbs) mm - 1.1
Dynamic Load Capacity (Cb) N - 1710000
Static Load Capacity (Cs) N - 10300000
Weight (kg) - 13.5
Bearing without Seals - SBB 80

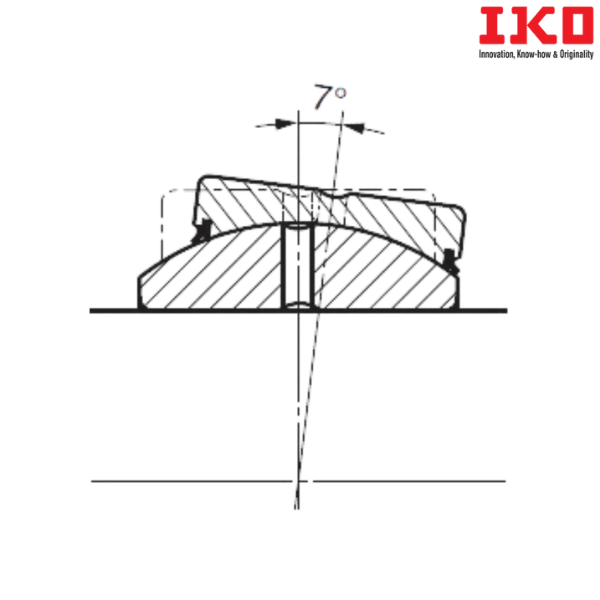

** Images are for representation purposes only
