Description
Brand - IKO
Item Number - SBB 64-2RS IKO
Also Known As - SBB64-2RS
Category - Steel-on-Steel Spherical Bushings Inch Series
Shaft Diameter (mm) - 101.6
Shaft Diameter (inch) - 4
Bore Diameter (d) mm - 101.6
Bore Diameter (d) inch - 4
Outer Diameter (D) mm - 158.75
Outer Diameter (D) inch - 6.25
Width (B) mm - 88.9
Width (B) inch - 3.5
Boundary Dimension (C) mm - 76.2
Boundary Dimension (C) inch - 3
Boundary Dimension (dk) mm - 146
Boundary Dimension (dk) inch - 5.748
Minimum Radial Internal Clearance (mm) - 0.13
Maximum Radial Internal Clearance (mm) - 0.23
Mounting Dimension (d1) mm - 115.8
Maximum Mounting Dimension (ras) mm - 0.6
Maximum Mounting Dimension (rbs) mm - 0.8
Dynamic Load Capacity (Cb) N - 1090000
Static Load Capacity (Cs) N - 6550000
Weight (kg) - 7.07
Bearing without Seals - SBB 64

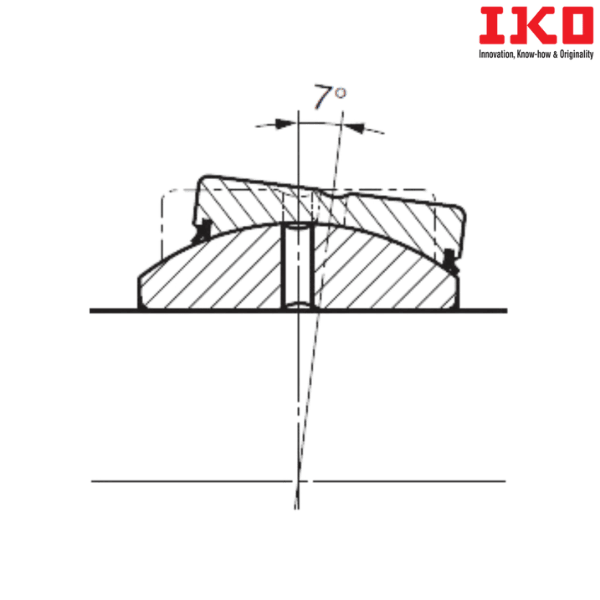

** Images are for representation purposes only
