Description
Brand - IKO
Item Number - SBB 56-2RS IKO
Also Known As - SBB56-2RS
Category - Steel-on-Steel Spherical Bushings Inch Series
Shaft Diameter (mm) - 88.9
Shaft Diameter (inch) - 3.5
Bore Diameter (d) mm - 88.9
Bore Diameter (d) inch - 3.5
Outer Diameter (D) mm - 139.7
Outer Diameter (D) inch - 5.5
Width (B) mm - 77.77
Width (B) inch - 3.062
Boundary Dimension (C) mm - 66.68
Boundary Dimension (C) inch - 2.625
Boundary Dimension (dk) mm - 128
Boundary Dimension (dk) inch - 5.039
Minimum Radial Internal Clearance (mm) - 0.13
Maximum Radial Internal Clearance (mm) - 0.23
Mounting Dimension (d1) mm - 101.6
Maximum Mounting Dimension (ras) mm - 0.6
Maximum Mounting Dimension (rbs) mm - 0.8
Dynamic Load Capacity (Cb) N - 837000
Static Load Capacity (Cs) N - 5020000
Weight (kg) - 4.83
Bearing without Seals - SBB 56

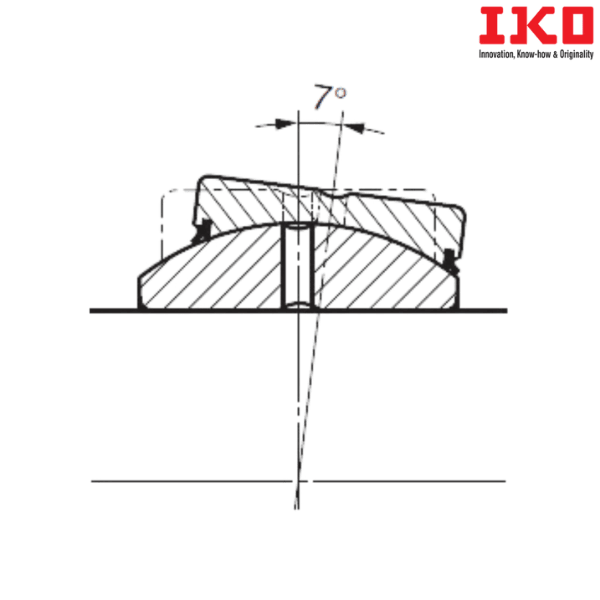

** Images are for representation purposes only
